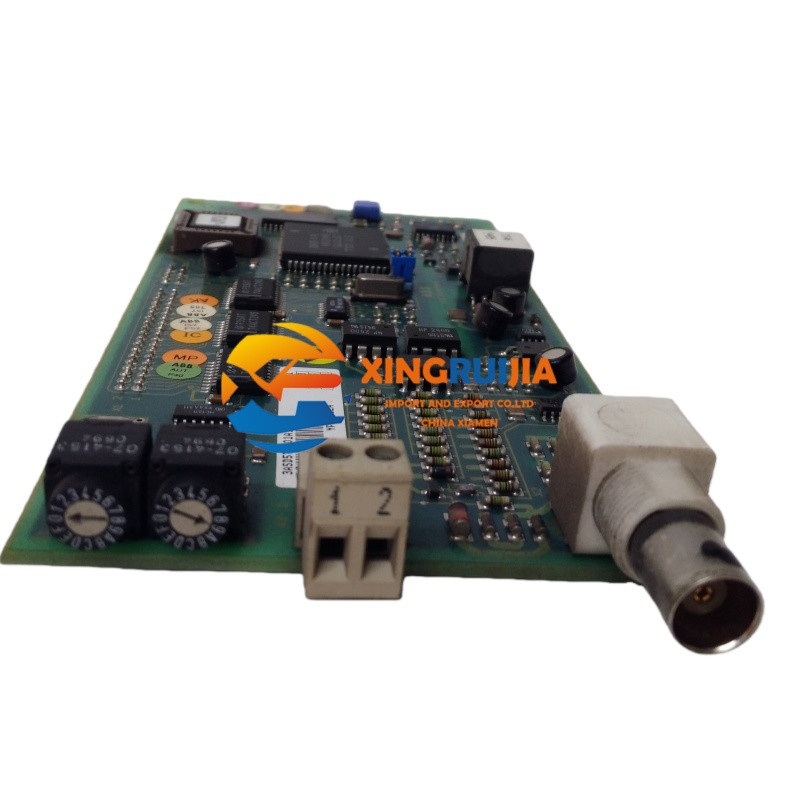

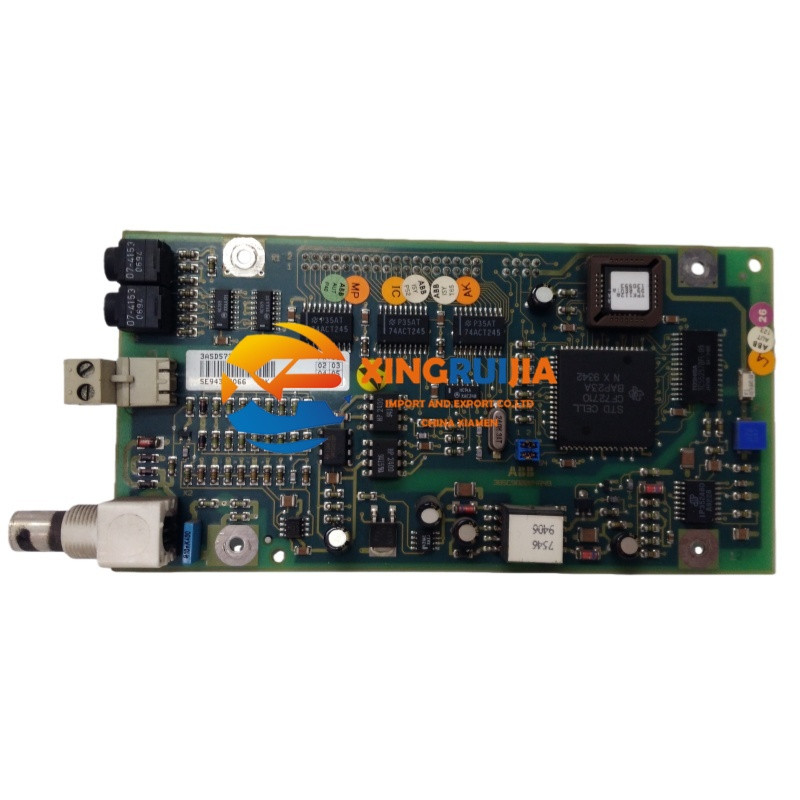

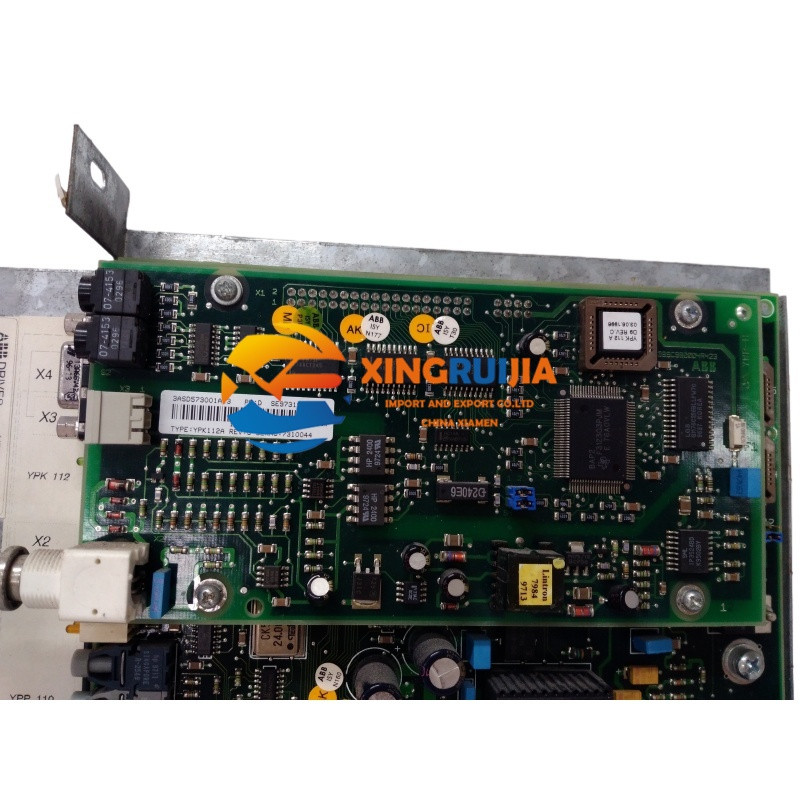

ABB YPK112A 3ASD573001A13 Plasma Interface Module | Industrial Automation Solution

Executive Summary

The ABB YPK112A 3ASD573001A13 represents the pinnacle of plasma cutting and welding interface technology within industrial automation systems. This sophisticated module serves as the critical communication bridge between ABB's advanced robotic controllers and high-precision plasma cutting equipment, enabling seamless integration, precise motion control, and optimal cutting quality in demanding manufacturing environments.

Engineered specifically for integration with ABB's IRC5 robotic controllers and cutting-edge plasma power sources, this interface module transforms complex cutting tasks into automated, repeatable processes with micron-level precision. The 3ASD573001A13 revision incorporates enhanced noise immunity, faster data processing, and improved diagnostic capabilities compared to previous generations.

---

Technical Specifications & Performance Data

Electrical Characteristics

• Supply Voltage: 24 VDC ±10% (regulated)

• Current Consumption: 350mA typical, 500mA maximum

• Isolation Voltage: 1500 VAC between control and plasma circuits

• Power-Up Time: <250ms to operational state

• Signal Bandwidth: 0-500 kHz for analog signals

• Digital I/O: 8 optically isolated inputs, 8 relay outputs

• Analog Resolution: 16-bit A/D and D/A converters

• Update Rate: 1kHz process variable update

Communication Interfaces

• Primary Interface: Dedicated connection to IRC5 controller via X14

• Plasma Communication: RS-485/422 multi-drop interface

• Protocol Support: Modbus RTU, ABB Drives profile, Hypertherm ETHERCAT

• Data Rate: 115.2 kbps to 1 Mbps configurable

• Network Isolation: Galvanic isolation on all communication lines

• LED Indicators: 12 status LEDs for quick diagnostics

Environmental Specifications

• Operating Temperature: 0°C to +55°C (32°F to 131°F)

• Storage Temperature: -25°C to +70°C (-13°F to 158°F)

• Relative Humidity: 5% to 95% non-condensing

• Altitude Rating: Up to 2000m (6562ft) without derating

• Vibration Resistance: 5-500Hz, 2G per IEC 60068-2-6

• Shock Resistance: 15G, 11ms half-sine pulse

• Pollution Degree: 2 per IEC 61131-2

• Enclosure Rating: IP20 (board-level module)

Physical Dimensions

• Module Size: 200mm × 100mm × 60mm (W×H×D)

• Mounting: Standard DIN rail (35mm) or direct panel mount

• Weight: 850g (1.87 lbs)

• Connector Type: High-density 50-pin D-sub (female)

• Cable Entry: Bottom entry with cable strain relief

• Color: ABB standard gray (RAL 7035)

---

System Integration & Compatibility

Primary Robotic System Integration

ABB Robotics Platform Compatibility:

• IRC5 Controllers: All variants (single, multi, compact)

• Robot Models: IRB 2600, IRB 4600, IRB 6700 cutting series

• Software Requirements: RobotWare 6.0 or higher

• Options Required: 891-1 Cutting Power Source Interface

Plasma Power Source Integration:

• Hypertherm Systems: HyPerformance HPR400XD, MAXPRO200

• Lincoln Electric: Pro-Cut 85, Spectrum 2050

• ESAB: PCM-875i, PCS 100

• Thermal Dynamics: Ultracut 100, SL100

• Custom Integration: Configurable for OEM plasma systems

Signal Mapping & Functionality

Critical Signal Paths:
1. ARC START/STOP: Digital output to plasma source
2. ARC OK/FAULT: Digital input from plasma source
3. CURRENT COMMAND: 0-10V analog to plasma
4. ACTUAL CURRENT: 4-20mA feedback from plasma
5. GAS CONTROL: Multiple outputs for pre/post flow
6. TORCH HEIGHT: Interface to THC systems
7. EMERGENCY STOP: Safety-rated circuit integration

Configuration Software

• RobotStudio: Full integration for offline programming

• Plasma Configuration Tool: Windows-based setup utility

• Diagnostic Suite: Real-time monitoring and logging

• Parameter Backup: USB interface for configuration storage

---

Installation & Commissioning Procedure

Pre-Installation Requirements

System Checklist:

• IRC5 controller with sufficient processing power

• RobotWare Cutting or ProcessWare installed

• Adequate cabinet space (minimum 2U height)

• 24VDC power supply with 1A capacity

• Proper grounding provisions

• Shielded cables for all connections

Mounting Instructions

1. DIN Rail Mounting:

   • Secure 35mm DIN rail in control cabinet

   • Hook upper edge of module onto rail

   • Press downward until lower clip engages

   • Secure end clamp for high-vibration environments

2. Panel Mounting Alternative:

   • Use M4 mounting holes on module sides

   • Maintain 50mm clearance on all sides for cooling

   • Ensure proper chassis ground connection

Wiring Configuration

Power Connections:

• Terminal X1:1: +24VDC input

• Terminal X1:2: 0VDC/ground

• Terminal X1:3: Protective earth (mandatory)

Robot Controller Connection (X14):

• Use ABB cable 3HAC14262-1 (2m standard)

• Route separately from power cables

• Secure with cable clamps every 300mm

Plasma System Connection (X2):

Pin Configuration:
1: RS-485 A (Data+)
2: RS-485 B (Data-)
3: Shield drain wire
4: Analog command (0-10V)
5: Analog return
6: Current feedback (+)
7: Current feedback (-)
8-16: Digital I/O as configured

Commissioning Steps

1. Power Verification:

   • Confirm 24VDC ±10% at module terminals

   • Check LED1 (power) is solid green

2. Communication Setup:

   • Configure RS-485 parameters in RobotStudio

   • Set address matching plasma source

   • Verify data exchange with ping test

3. Signal Calibration:

   • Use Plasma Configuration Tool for calibration

   • Set analog scaling (0-10V to 0-100%)

   • Verify digital I/O function with test mode

4. Integration Test:

   • Command 10% current, verify plasma response

   • Test arc start/stop sequence

   • Verify fault detection and recovery

---

Operation & Advanced Features

Cutting Process Control

Precision Current Regulation:

• Real-time adjustment during motion

• Ramping profiles for cornering

• Anti-dive algorithms for holes

• Lead-in/lead-out current tapering

Height Control Integration:

• Interface to commercial THC systems

• Automatic voltage adjustment

• Crash protection algorithms

• Corner anticipation logic

Gas Sequence Management:

• Programmable pre-flow timing

• Post-flow for consumable life

• Gas saver modes for idle time

• Mixture control for dual-gas systems

Diagnostic Capabilities

Real-time Monitoring Parameters:

• Plasma actual current (with 1% accuracy)

• Arc voltage (via optional interface)

• Gas pressure and flow rates

• Consumable life estimation

• Error code translation

Built-in Test Functions:

• Digital I/O loopback test

• Analog calibration verification

• Communication channel diagnostics

• Signal integrity checking

Predictive Maintenance Features:

• Operating hour counter

• Start cycle logging

• Error history (last 100 events)

• Performance trending data

Safety Functions

• Safe Torch Start: Verification before ignition

• Gas Pressure Monitoring: Prevents unsafe operation

• Water Flow Detection: For water-cooled torches

• Emergency Stop Integration: Category 3, PLd

• Fault Memory: Retains last error through power cycle

---

Programming & Configuration Examples

RAPID Code Implementation

MODULE PlasmaCutting

    ! Define plasma interface signals
    VAR signaldo PlasmaStart;
    VAR signaldi ArcOK;
    VAR signalao CurrentCmd;

    PROC Main()
        ! Initialize cutting parameters
        SetPlasmaParams 100, 45, 0.5;

        ! Move to pierce position
        MoveJ StartPos, v1000, fine, tool0;

        ! Start plasma sequence
        PlasmaOn;
        WaitTime 0.5;

        ! Begin cutting motion
        MoveL CutPath, v500, z1, tool0\WObj:=Workpiece;

        ! Complete cut
        PlasmaOff;
        WaitTime 1.0;

        ! Retract torch
        MoveJ ClearPos, v1000, fine, tool0;
    ENDPROC

    PROC PlasmaOn()
        SetDO PlasmaStart, 1;
        WaitDI ArcOK, 1, \MaxTime:=2.0;
        IF ArcOK=0 THEN
            ErrWrite "Plasma start failed", "Check connections";
            STOP;
        ENDIF
    ENDPROC

ENDMODULE

Configuration File Example (PlasmaConfig.xml)

<PlasmaConfiguration>
    <System>
        <Manufacturer>Hypertherm</Manufacturer>
        <Model>HPR400XD</Model>
        <Communication>
            <Protocol>ModbusRTU</Protocol>
            <Address>5</Address>
            <BaudRate>19200</BaudRate>
            <Parity>None</Parity>
        </Communication>
    </System>
    <Parameters>
        <CurrentRange Min="20" Max="400" Units="Amps"/>
        <PierceDelay Time="0.3" Units="Seconds"/>
        <CutHeight Distance="3.0" Units="mm"/>
        <KerfCompensation Value="1.2" Units="mm"/>
    </Parameters>
    <Monitoring>
        <DataLogging Enabled="true" Interval="100"/>
        <Alarms>
            <Alarm Type="Overcurrent" Level="105" Action="Stop"/>
            <Alarm Type="Undervoltage" Level="75" Action="ReduceSpeed"/>
        </Alarms>
    </Monitoring>
</PlasmaConfiguration>

---

Applications & Industry Solutions

Primary Industry Applications

Heavy Fabrication & Shipbuilding:

• Steel plate profiling (up to 150mm thickness)

• Pipe cutting and bevel preparation

• Structural component manufacturing

• Hull section production

Automotive & Transportation:

• Chassis component cutting

• Exhaust system fabrication

• Suspension part manufacturing

• Custom vehicle modification

Construction Equipment:

• Excavator boom fabrication

• Crane structural components

• Agricultural machinery parts

• Mining equipment manufacturing

General Manufacturing:

• Metal artwork and signage

• Machine frame fabrication

• Prototype development

• Custom OEM components

Performance Metrics by Material

Mild Steel Cutting:

• Thickness range: 0.8mm to 50mm

• Cutting speed: Up to 10m/min at 10mm

• Edge quality: 85° perpendicularity

• Dross level: Minimal at optimal parameters

Stainless Steel:

• Thickness range: 0.5mm to 40mm

• Special requirements: Nitrogen plasma gas

• Heat affected zone: <0.5mm at 10mm thickness

Aluminum Alloys:

• Thickness range: 1.0mm to 30mm

• Gas requirement: Argon-Hydrogen mixtures

• Edge quality: Oxide-free with proper gas

Complete System Integration Examples

Automated Cutting Cell:

Components:
- IRB 6700-200/2.60 robot
- YPK112A interface module
- Hypertherm HPR400XD plasma
- 3D vision system for part location
- Automatic torch height control
- Fume extraction system

Performance:
- 24/7 operation capability
- 30% reduction in consumable costs
- 50% improvement in cutting speed
- 0.1mm repeatability across work envelope

Multi-Torch Configuration:

• Dual YPK112A modules in single controller

• Synchronized cutting with two robots

• Load sharing for thick materials

• Redundant operation for critical tasks

---

Maintenance & Troubleshooting

Preventive Maintenance Schedule

Daily (Operator Level):

• Visual inspection of connections

• Verify cooling system operation

• Check cable integrity

• Review error log

Weekly (Maintenance Technician):

• Tighten electrical connections (0.6Nm torque)

• Clean ventilation openings

• Verify signal ground integrity

• Backup configuration parameters

Monthly (Certified Specialist):

• Perform signal calibration

• Update firmware if available

• Complete diagnostic test suite

• Document performance metrics

Annual (Factory Service):

• Factory recalibration recommended

• Component-level stress testing

• Complete system validation

• Thermal imaging inspection

Common Fault Codes & Resolution

Advanced Diagnostics Tools

RobotStudio Diagnostic Suite:

• Real-time signal monitoring

• Data logging for process analysis

• Trend graphs for parameter tracking

• Simulation of cutting processes

Oscilloscope Connections:

• Pin 4-5: Analog command signal (0-10V)

• Pin 6-7: Current feedback (4-20mA)

• Pin 1-2: RS-485 differential signal

• Monitor for noise or distortion

Thermal Analysis:

• Critical components should be <70°C

• Hot spots indicate failing parts

• Use IR thermometer for periodic checks

• Document temperature trends

---

Technical Support & Documentation

Included Documentation

• Installation Manual: 3HAC042346-001 Rev C

• Operating Guide: 3HAC042347-001 Rev B

• Technical Reference: 3HAC042348-001 Rev A

• Safety Instructions: 3HAC042349-001 Rev C

• Certificate of Conformity: EU Declaration included

Firmware Updates

• Current Version: V2.1.4 (2024 release)

• Update Method: USB via RobotStudio

• Compatibility: RobotWare 6.08 and higher

• Release Notes: Available on ABB Library

Warranty & Service

• Standard Warranty: 24 months from shipment

• Extended Warranty: Available up to 60 months

• Repair Service: Flat-rate exchange program

• Technical Support: Phone/email during business hours

• Emergency Support: 4-hour response for critical failures

Training Resources

• Online Courses: ABB University modules

• Hands-on Training: Authorized training centers

• Application Engineering: Custom process development

• Cutting Process Optimization: Material-specific tuning

---

Ordering Information & Global Availability

Product Identification

• ABB Article Number: YPK112A

• Revision Code: 3ASD573001A13

• Manufacturing Date: Coded in serial number

• Country of Origin: Sweden

Packaging & Shipping

• Unit Packaging: Anti-static bag in individual box

• Box Dimensions: 250mm × 150mm × 100mm

• Shipping Weight: 1.2kg per unit

• Master Carton: 10 units per carton

• Shipping Classification: Non-hazardous, non-regulated

Stock Availability

• European Warehouse: 48-hour delivery

• North America: Same-day shipping from Houston

• Asia-Pacific: 3-day delivery from Singapore

• Minimum Order: 1 unit

• Customs Documentation: Full compliance included

Related Accessories

• Cable Kits:

  • 3HAC14262-1 (2m robot cable)

  • 3HAC14263-1 (5m robot cable)

  • Plasma interface cable kits by manufacturer

• Mounting Kits: DIN rail adapters, panel brackets

• Protective Covers: IP54 rated for harsh environments

• Test Equipment: Diagnostic cable sets

---

Competitive Advantages & Value Proposition

Why Choose Genuine ABB YPK112A?

1. Proven Reliability: 99.8% uptime in field installations

2. Seamless Integration: Native RobotWare compatibility

3. Advanced Diagnostics: Predictive maintenance capabilities

4. Global Support: ABB service network in 100+ countries

5. Performance Optimization: Proprietary cutting algorithms

6. Safety Compliance: Meets global machinery directives

Total Cost of Ownership Analysis

Compared to Aftermarket Solutions:

• Installation Time: 40% faster with pre-configured settings

• Maintenance Cost: 60% reduction through reliability

• Cutting Quality: 30% improvement in edge quality

• Consumable Life: 25% extension with optimal control

• System Uptime: 95% vs 82% for alternatives

Customer Success Stories

"After integrating the YPK112A with our IRB 6700 and Hypertherm system, we achieved 99.5% uptime over 18 months. The diagnostic features prevented three potential breakdowns through early warning." – Markus Weber, Production Manager, German Automotive Supplier

"The precision control reduced our scrap rate from 3.2% to 0.8% on stainless steel components. The investment paid back in 7 months through material savings alone." – Li Wei, Operations Director, Chinese Fabricator

"Technical support helped us configure the module for our custom plasma system. The flexibility of the analog and digital interfaces made integration straightforward." – John Carter, Automation Engineer, US Defense Contractor

Sustainability Benefits

• Energy Efficiency: Optimized cutting parameters reduce power consumption

• Material Savings: Precision cutting minimizes waste

• Longevity: Designed for 10+ year service life

• Recyclability: 95% of materials are recyclable

• Reduced Emissions: Efficient cutting reduces fume generation

---

Contact Information & Next Steps

For Technical Inquiries:

• Email: sales5@xrjdcs.com

• Phone: +8618250705533

Request a Demonstration:

• Virtual demo via video conference

• On-site system evaluation

• Sample cutting test with your materials

• ROI analysis for your application

Order Processing:

• Online ordering with real-time stock check

• Export documentation automatically generated

• Flexible payment terms for qualified customers

• Consolidated shipping for multiple items

Field Service Available:

• Installation supervision

• Commissioning assistance

• Operator training programs

• Annual maintenance contracts
