ABB 3BHB003689

Product Overview

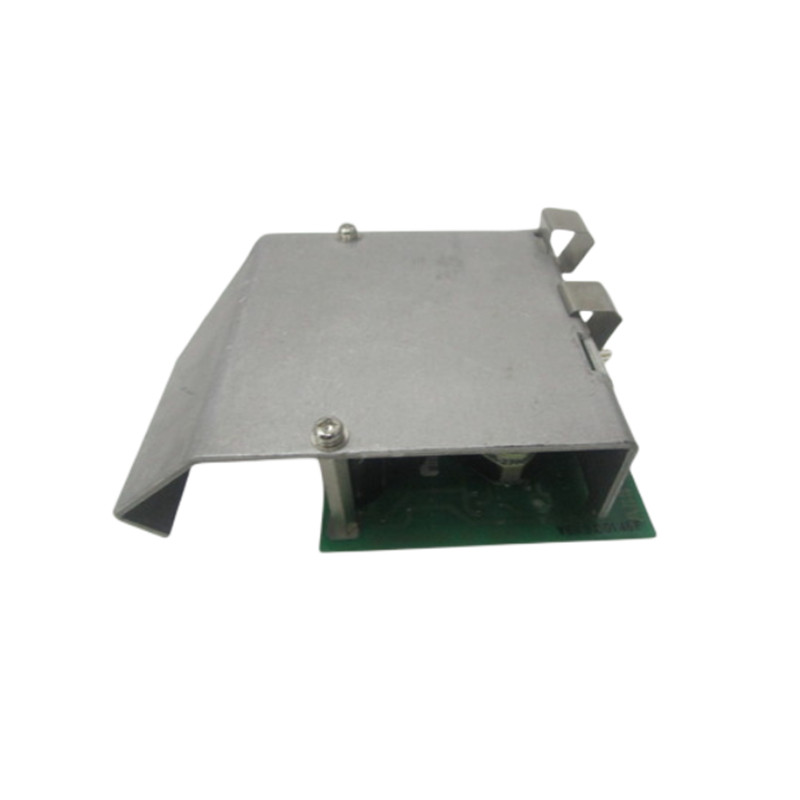

ABB 3BHB003689 is an IGCT gate drive interface board developed for ABB ACS6000 medium voltage variable frequency drive systems. It serves as the optical signal bridge between the main control unit and IGCT power stacks inside the medium voltage converter cabinet.

This board receives optical trigger commands from the master controller, converts optical signals into drive pulses to fire IGCT power semiconductors. Meanwhile, it collects fault feedback signals from the power unit and sends status information back to the drive control system. Optical isolation eliminates electromagnetic interference between low voltage control circuits and high voltage power sections, protecting control hardware during high-power operation. It is a critical spare component for overhaul, repair and retrofit of legacy ABB ACS6000 medium voltage drives used in heavy industry.

Key Features

1. Part No: 3BHB003689, Type: IGCT Gate Drive Interface Board
2. Compatible with ABB ACS6000 medium voltage drive converter
3. Optical fiber signal transmission for IGCT triggering
4. High galvanic isolation between control side and high-power power stack
5. Real-time power unit fault detection and feedback function
6. Rack plug-in design for quick replacement inside drive cabinet
7. Built-in status LED indicators for power, trigger and fault diagnosis
8. Strong anti-EMI performance for heavy industrial high-power cabinet environment
9. Supports continuous heavy-duty operation for fan, pump and mill drives
10. Original spare part for maintenance of ABB medium voltage converters

Technical Specifications

Application Fields

ABB 3BHB003689 IGCT gate drive board applies to high-power medium voltage converter maintenance projects: ✅ Steel mill rolling mill medium voltage drive cabinet ✅ Mine hoist & heavy crusher ACS6000 drive system ✅ Large industrial fan and water pump medium voltage variable speed control ✅ Cement plant rotary kiln high-power converter ✅ Petrochemical large compressor drive unit ✅ Power plant auxiliary medium voltage frequency converter ✅ Legacy ACS6000 drive overhaul and spare replacement

Matching Accessories

• IGCT power modules
• Main control board of ACS6000 drive
• Optical fiber cables for gate trigger
• Converter rack and backplane
• Voltage / current sensing boards
