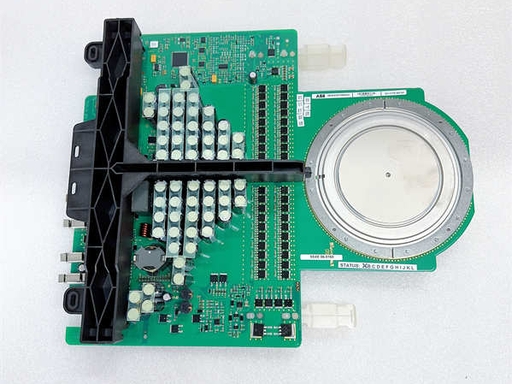

ABB 3BHE019719R0101 (GVC736BE101)

IGCT Power Control Module for Chemical Industry – English Product Introduction

Product Overview

3BHE019719R0101 (GVC736BE101) is an advanced Integrated Gate-Commutated Thyristor (IGCT) power module manufactured by ABB, designed for high-power, high-reliability applications in chemical, petrochemical, and process industries. It serves as a core power conversion and control component within ABB’s 800xA, Symphony Plus, and AC 800PEC platforms, delivering precise, efficient, and robust power switching and regulation for critical process loads such as high-voltage motors, reactors, and variable-frequency drives (VFDs).

Key Features

1. High-Power IGCT Technology
   • Combines thyristor-like high voltage/current withstand with fast transistor-style turn-off.
   • Rated for medium-to-high voltage (up to 6 kV DC) and high current (up to 4 kA).
   • Enables snubberless operation, simplifying system design and reducing costs.
2. Superior Reliability for Harsh Chemical Environments
   • Conformal-coated PCB resists chemical vapors, moisture, and dust.
   • Operating temperature: -25°C to +70°C; wide humidity tolerance (5–95% non-condensing).
   • Compliant with IEC 61000 (EMC) and CE/UL/CSA certifications; IP20 protection.
3. Precision Control & Fast Switching
   • High-speed switching (up to 30 kHz) for accurate power regulation and low harmonic distortion.
   • Low on-state loss improves energy efficiency and reduces heat generation.
   • Built-in overvoltage, overcurrent, short-circuit, and overtemperature protection.
4. Seamless System Integration
   • Compatible with ABB 800xA, Symphony Plus, AC 800PEC, and third-party DCS/PLC systems.
   • Supports Modbus RTU/TCP, Profibus DP, and EtherNet/IP for easy data exchange.
   • Compact, plug-in DIN-rail design for simple installation and hot-swap maintenance.

Typical Applications

• Chemical reactors: High-power motor control and precise power regulation for mixing and heating systems.
• Pumps/compressors: VFD control for energy-efficient operation of critical process machinery.
• Hazardous zones: Power switching and isolation in explosive/corrosive areas (SIL-capable).
• Distillation & refining: High-voltage power conversion for separation and purification processes.
• Utilities: Boiler, wastewater treatment, and circulating water system power control.

Technical Specifications

• Part Number: 3BHE019719R0101
• Model: GVC736BE101
• Type: IGCT Power Control Module
• Voltage Rating: Up to 6 kV DC
• Current Rating: Up to 4 kA
• Switching Frequency: Up to 30 kHz
• Power Supply: 24 VDC ±20% (control)
• Operating Temperature: -25°C ~ +70°C
• Mounting: 35 mm DIN rail / standard rack
• Protection Features: Overvoltage, overcurrent, short-circuit, overtemperature
• Certifications: CE, UL, CSA, RoHS, IEC 61508 (SIL 2/3 capable)

Product Advantages

• High efficiency: Low losses reduce energy consumption and cooling requirements.
• Robustness: IGCT technology ensures long service life in harsh chemical environments.
• Safety: Comprehensive protection and SIL compliance minimize operational risks.
• Scalability: Compact design and easy integration lower system upgrade costs.
• Uptime: Hot-swap capability and advanced diagnostics reduce maintenance downtime.

---

Short Version (for Catalog / Bidding)

ABB 3BHE019719R0101 (GVC736BE101) is a high-power IGCT control module for ABB DCS/PLC systems. Featuring 6 kV / 4 kA rating, 30 kHz switching, conformal coating, and SIL compliance, it delivers efficient, reliable power control for chemical, petrochemical, and hazardous-area applications, ensuring 24/7 operation and minimal downtime.
