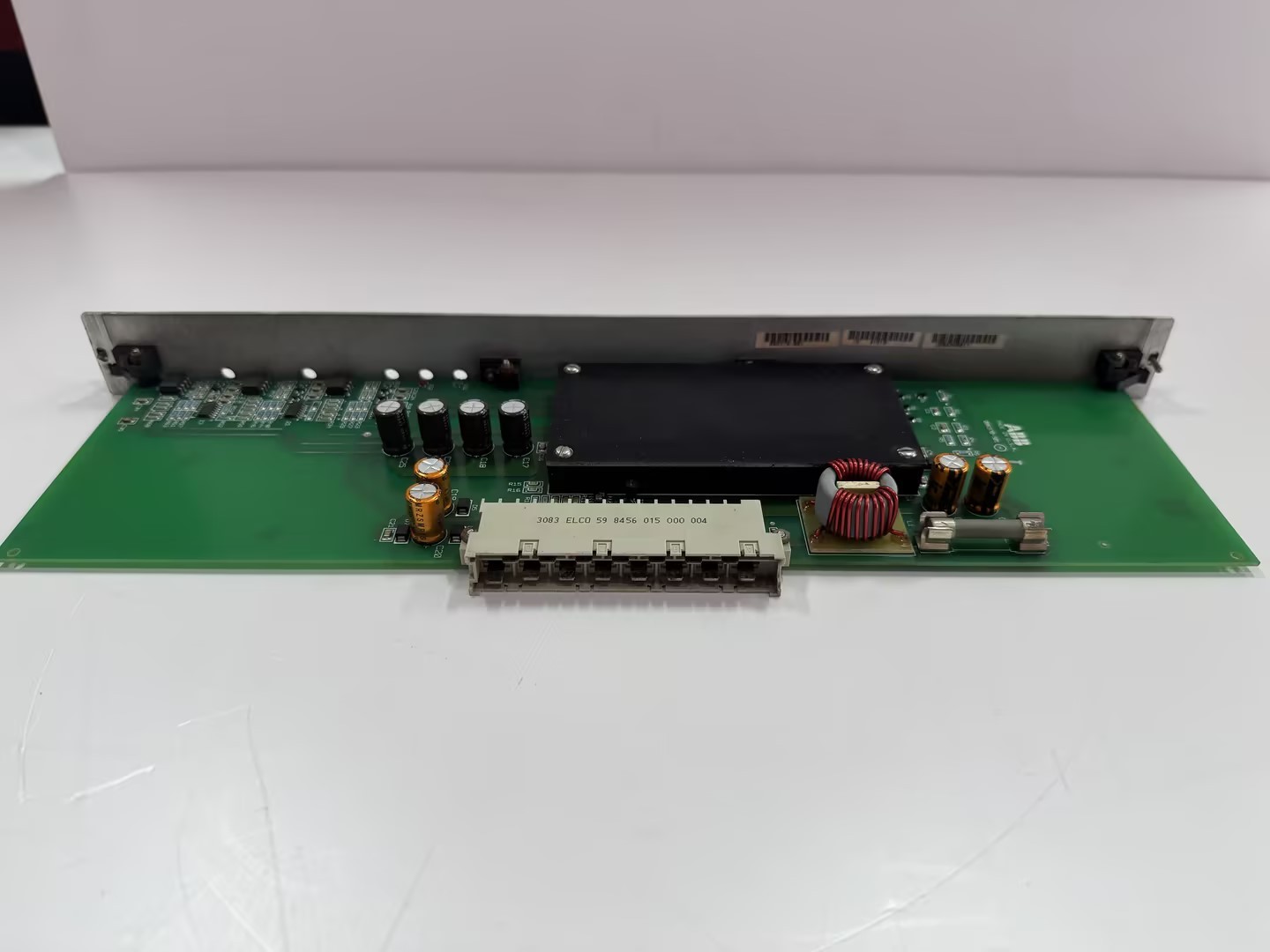

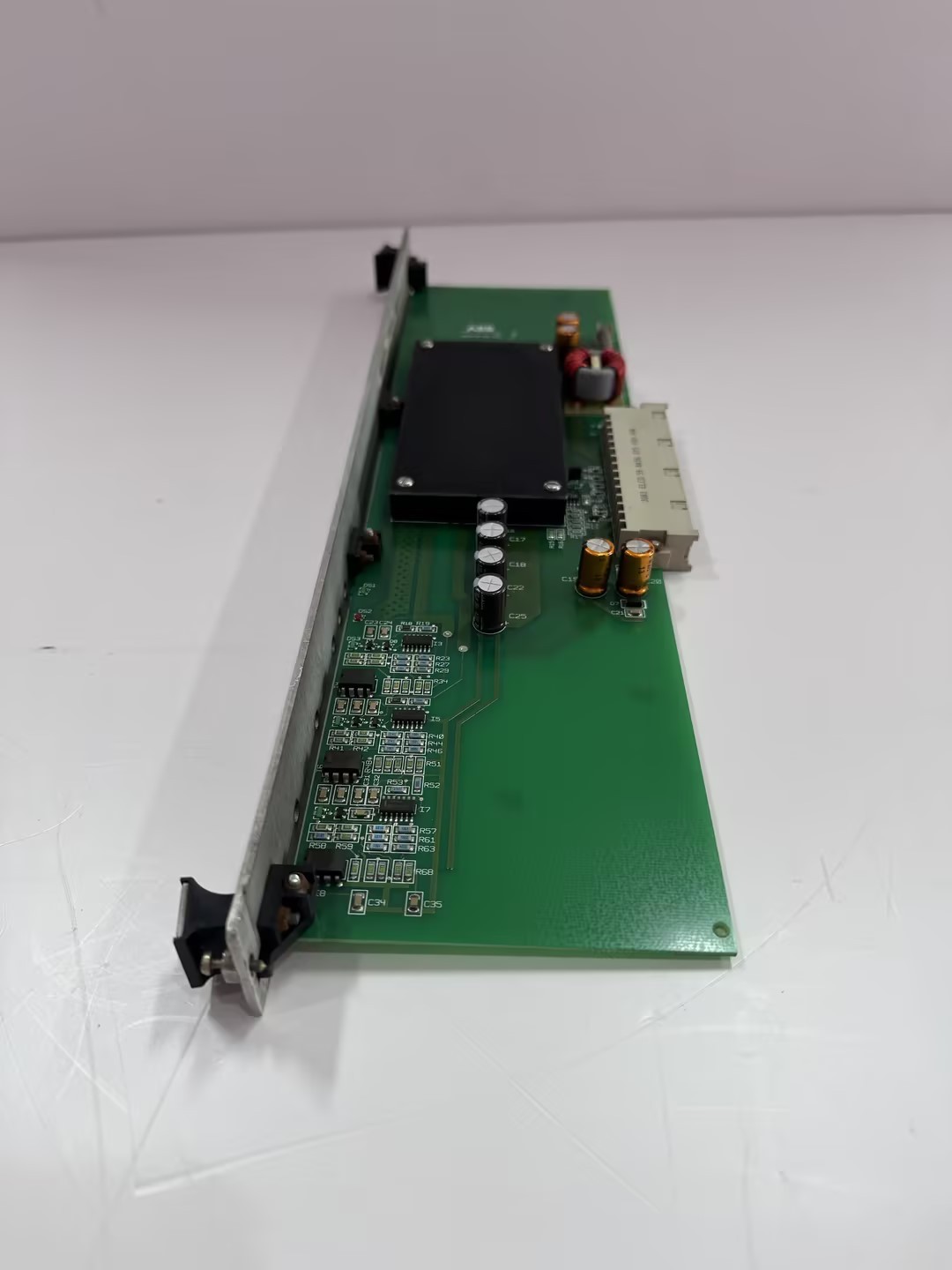

ABB 3BHE022294R0103 (GFD233A103) PLC Module – Product Introduction (Chemical Industry)

ABB 3BHE022294R0103 (GFD233A103) is a high-performance, chemistry-grade PLC control module designed for ABB Symphony Plus / INFI 90 / Freelance DCS platforms, optimized for continuous process control, harsh environments, and high-reliability applications in chemical, petrochemical, and refining industries.

1. Overview

• Part No: 3BHE022294R0103
• Model: GFD233A103
• Type: Multifunctional process control / I/O / communication module
• Target Sector: Chemical, petrochemical, oil & gas, power, and pharmaceuticals
• Core Role: High-speed signal acquisition, loop control, device interlocking, and plant-wide data exchange for reactors, distillation columns, pipelines, and hazardous areas.

2. Key Features (Chemical Industry Focus)

• ✅ Multi-Signal Processing
  • Analog: 4–20 mA / 0–10 V (sensors, transmitters)
  • Digital: 24 VDC in/out (valves, pumps, alarms)
  • Encoder: Incremental / absolute (flow, level, position)
• ✅ High-Speed & Precision
  • Analog sampling: ≥1 kHz
  • Digital response: ≤1 ms
  • PID loops: Up to 512; ideal for temperature/pressure/flow closed-loop control
• ✅ Chemical-Grade Reliability
  • Extended temp: -20°C to +65°C
  • Humidity: 5–95% non-condensing
  • EMC: IEC 61000-4; ±15 kV ESD; resistant to corrosive/conductive atmospheres
• ✅ Redundancy & Safety
  • Redundant 24 VDC power (18–30 VDC)
  • Hot-swappable; no shutdown for replacement
  • Overvoltage/overcurrent/thermal protection; SIL-rated for critical interlocks
• ✅ Seamless Communication
  • Protocols: Profibus DP, Modbus TCP/RTU, OPC UA
  • Integration: ABB Symphony Plus, third-party DCS/SCADA
  • Real-time data exchange for MES/ERP and hazardous area monitoring

3. Chemical Industry Applications

• Reactor Control: Precise temperature/pressure/feed control; batch & continuous processes
• Distillation & Separation: Level, flow, and composition monitoring; valve sequencing
• Pipeline & Storage: Leak detection, pump control, inventory management
• Hazardous Areas: Classified zones (Ex), corrosive environments, dust/chemical vapor
• Utilities: Boiler, cooling water, and waste treatment control

4. Technical Specifications (Summary)

• Power: 24 VDC ±10%; redundant; ≤15 W
• I/O Channels: Mixed analog/digital; encoder input
• Communication: Profibus DP, Modbus TCP/RTU, OPC UA
• Temperature: -20°C to +65°C
• Mounting: DIN rail / ABB standard rack; plug-in design
• Weight: ~0.5 kg

5. Benefits for Chemical Plants

• Stable Production: High precision and fast response reduce variability in critical reactions
• Lower Downtime: Hot-swap and redundancy maximize uptime in 24/7 operations
• Harsh Environment Ready: Withstands chemicals, moisture, and wide temperature ranges
• Simplified Integration: Works with existing ABB DCS and third-party systems
• Safer Operations: Robust protection and SIL-capable interlocks reduce risk
