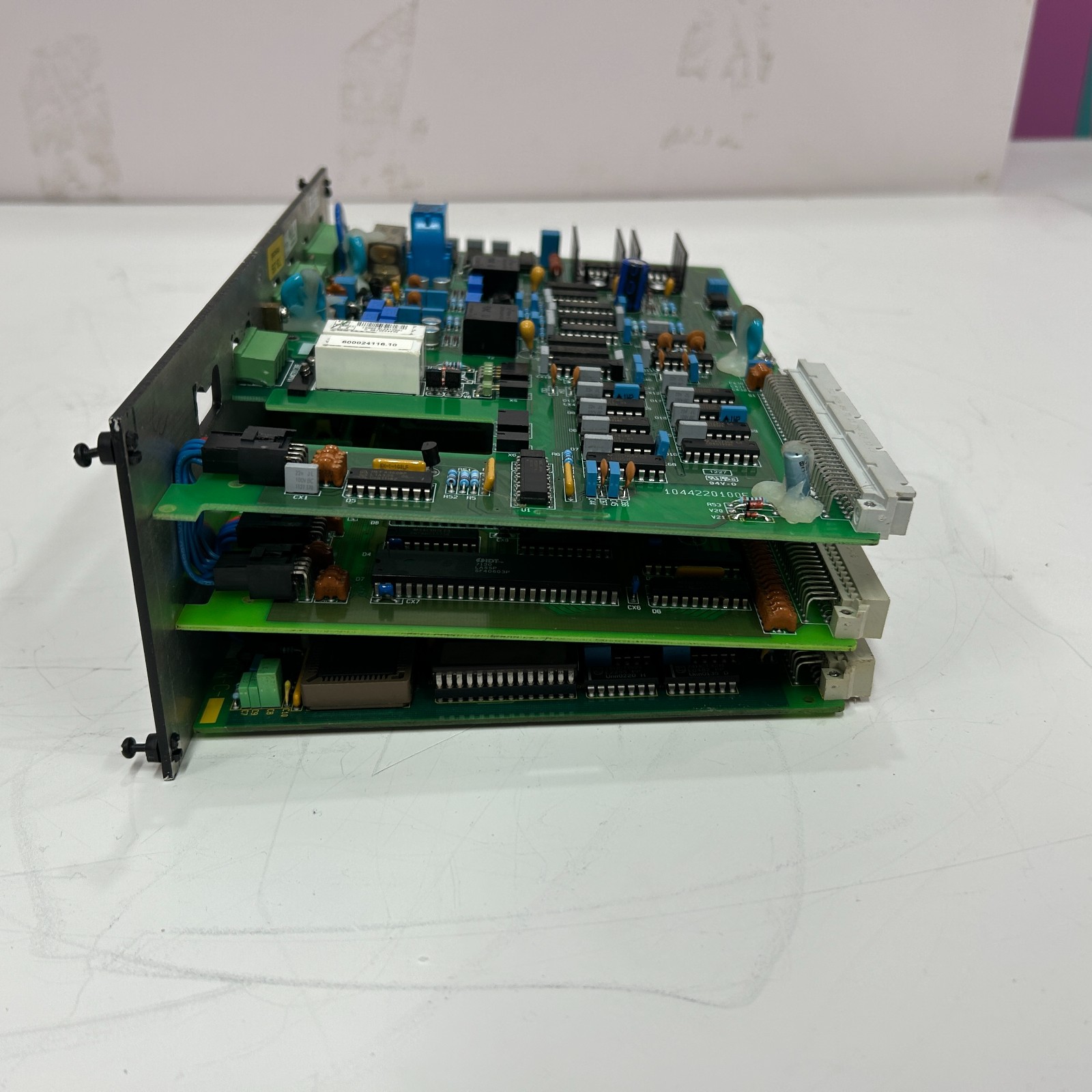

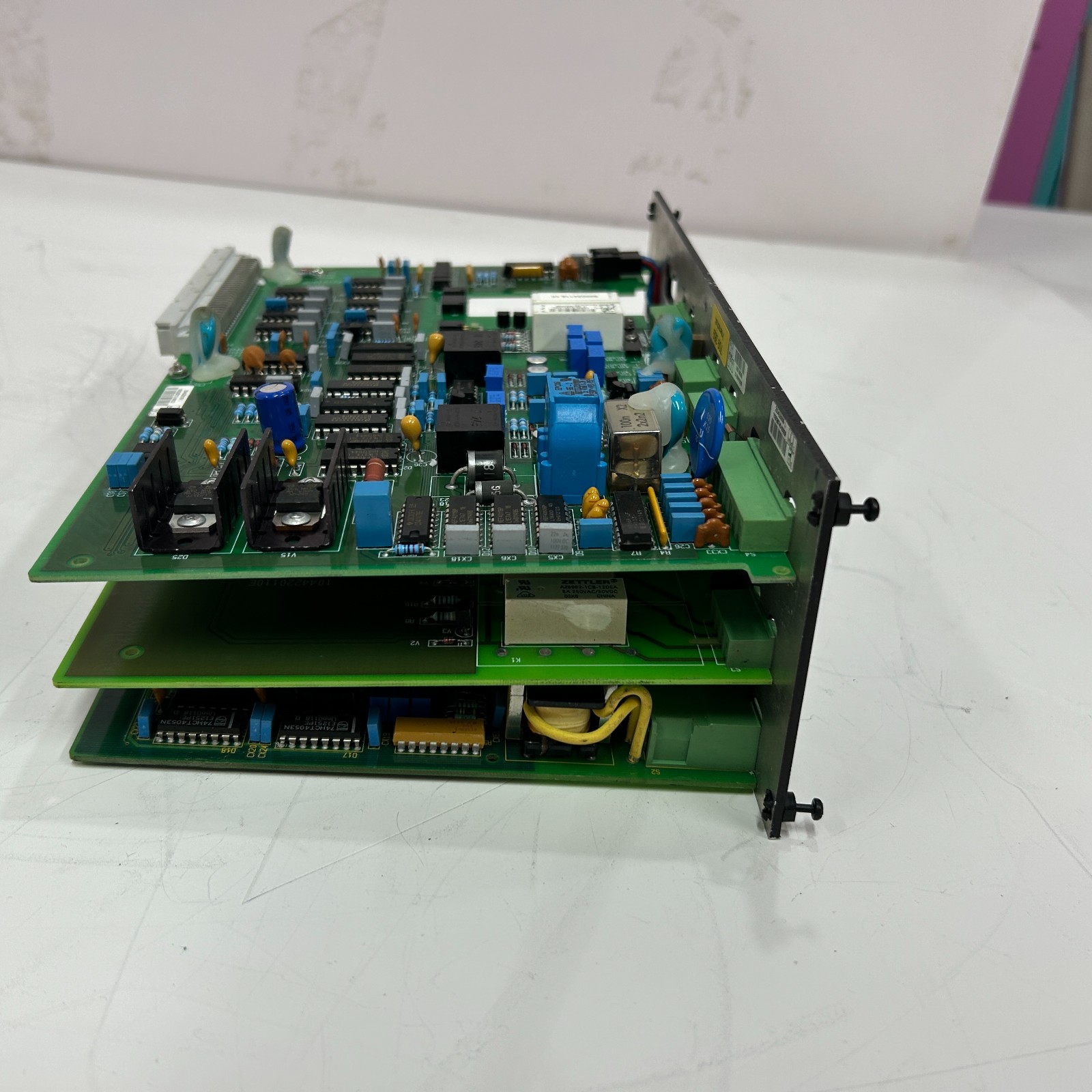

The ABB YPQ110A, part number 3ASD573001A5, is a dedicated position feedback module designed for ABB industrial drive and automation control systems. Specially used to receive real-time position, speed and angle signals from rotary encoders, proximity displacement sensors and position transmitters, it serves as the core feedback component of closed-loop motion control.
It converts field position pulse signals into standardized digital data and uploads to the main control board, enabling precise positioning, speed closed-loop regulation and axis synchronization for servo drives and frequency converters. Widely matched with ABB original mainboard YPP110A, applied in heavy-duty drive, process automation and mechanical positioning control scenarios.

Key Features

1. Multi-signal Position Acquisition Supports incremental encoder, differential pulse and analog position feedback signals; compatible with mainstream industrial position sensors to collect real-time axis position and rotational speed data.
2. High-precision Signal Processing Built-in signal filtering circuit, effectively filters electromagnetic interference from high-power inverters to guarantee accurate position feedback and avoid positioning deviation.
3. Standard Cabinet Installation DIN rail mounting design, internal dedicated bus connection with master controller, plug-and-play structure for convenient on-site replacement and system maintenance.
4. Strict Industrial Environmental Adaptability DC24V power supply, working temperature range -20℃ ~ +60℃, IP20 protection grade, stable operation in dusty, high-vibration factory environments.

Technical Parameters

• Model: YPQ110A
• Part Code: 3ASD573001A5
• Power: DC 24V
• Function: Position & speed feedback collection
• Matching part: ABB YPP110A CPU board
• Protection class: IP20

Application Scope

Metallurgical rolling equipment, printing machinery, packaging automation, crane positioning system, wind power auxiliary drive, textile machinery and automated production line closed-loop positioning control.

Supply Information

Original ABB authentic in stock, complete factory test documents available, fast global delivery with technical datasheet and wiring guidance.
