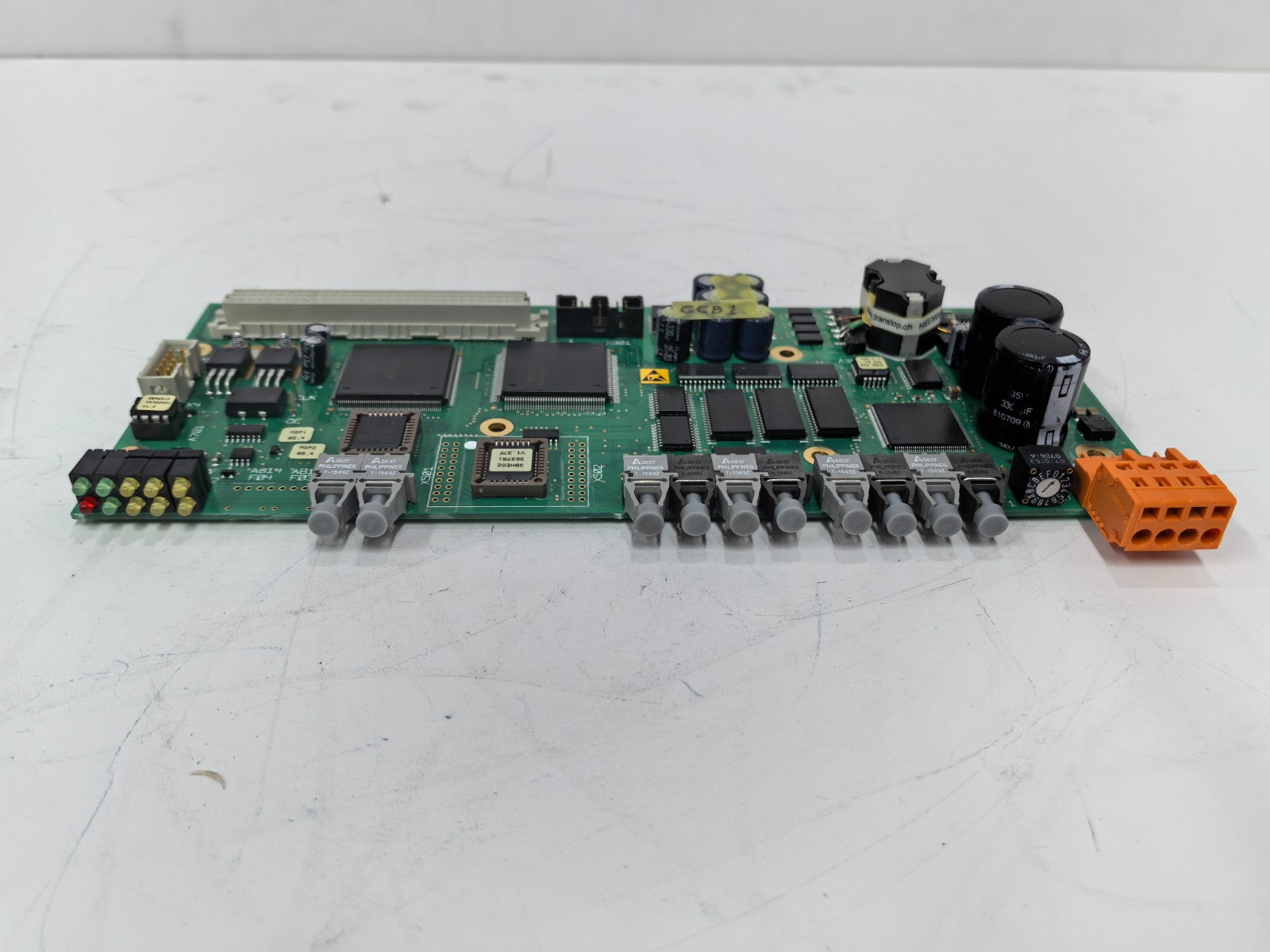

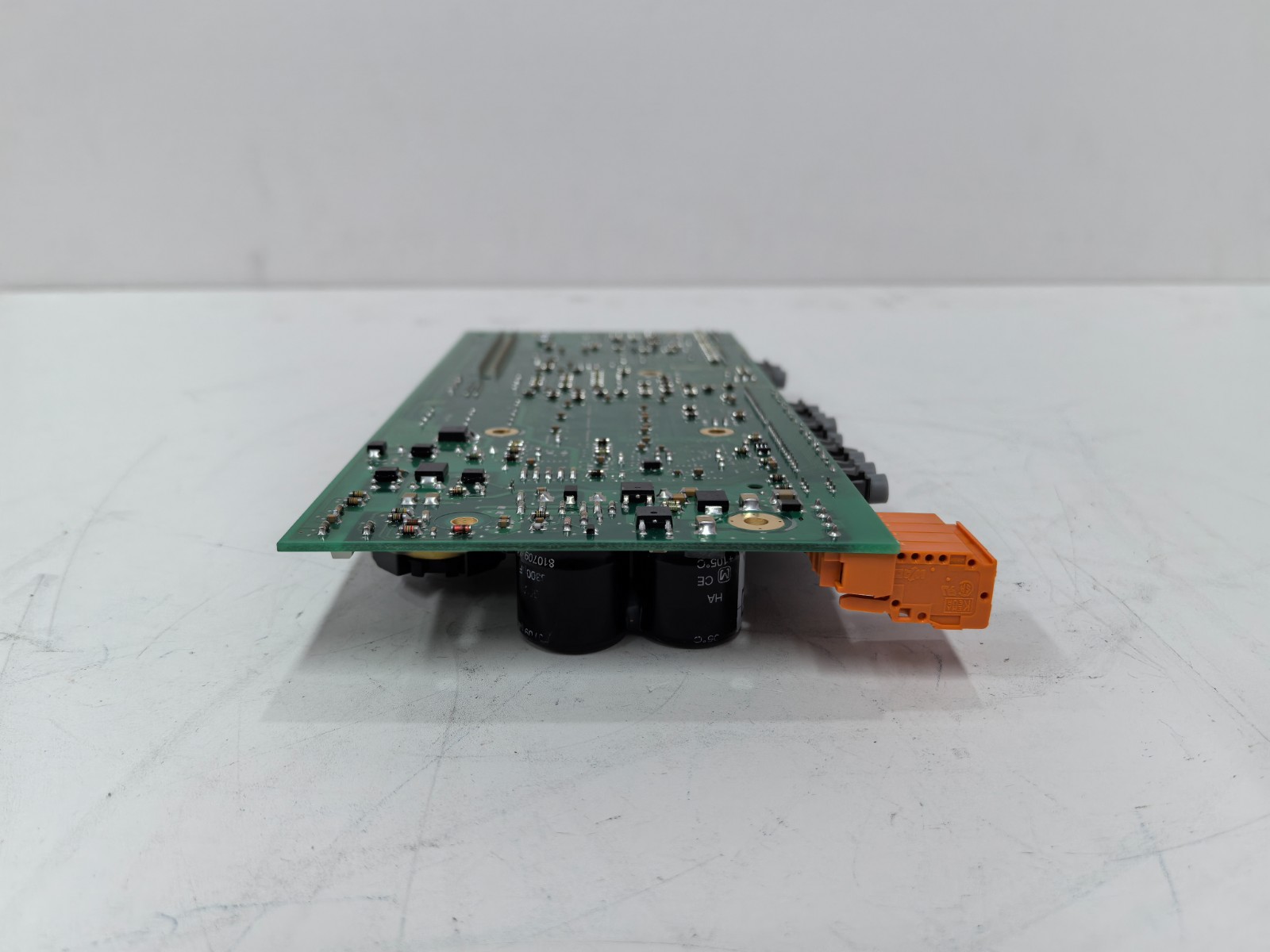

ABB CP800 High Efficiency Industrial Processor Unit（Word count:996 | Original In-stock English Product Intro）

The ABB CP800 is a high-efficiency dedicated industrial processor unit developed for ABB Symphony Plus DCS control ecosystem, functioning as core computing and communication center for distributed process automation across global heavy process industries. Manufactured under ABB’s strict Swiss industrial production standards, this compact processor module is engineered for high-speed logic computation, field data collection and cross-device data forwarding, widely stocked as genuine brand-new spare part for DCS cabinet upgrade, obsolete controller replacement and automation system renovation projects in steel mills, chemical factories, thermal power plants, pulp & paper facilities and wastewater treatment plants with severe dust, high humidity and intensive electromagnetic interference surroundings. All available CP800 units are original factory sealed without used or refurbished components, covered by standard 12-month official ABB warranty to cut unexpected production halt caused by processor breakdown and prolong the service cycle of the whole DCS control system.
The outstanding high-efficiency operational performance stands as the core competitive edge of CP800 processor unit, driven by dual independent industrial-grade 32-bit ColdFire processors clocked at fixed 256MHz to deliver powerful parallel computing capacity. Equipped with onboard 64MB industrial RAM and 4MB solid-state ROM, the module permanently stores compiled control programs, site production parameters and preloaded multi-protocol firmware without frequent data loss or reading delay during long-term round-the-clock running. This high-efficiency hardware configuration enables the processor to run over 30,000 editable control function blocks and divide system tasks into maximum 8 independent scheduling cycles, finishing full closed-loop operational arithmetic and real-time signal feedback for over 5,000 mixed analog and digital I/O channels within only 250ms, greatly shortening system response latency and boosting overall DCS operational efficiency for continuous-flow industrial production lines. Fully compliant with global IEC61131-3 programming criterion, CP800 supports Structured Text, Ladder Diagram and Function Block Diagram mainstream programming languages, allowing programming engineers to flexibly compile customized control logic matching diversified production techniques without extra software adaptation cost.
In communication configuration supporting efficient data transmission, CP800 integrates one PN800 Plant Network 10/100Mbps adaptive Ethernet port plus universal RS232/RS485 serial terminal on front panel, natively compatible with Modbus TCP/RTU, PROFIBUS DP and PROFINET mainstream industrial fieldbus protocols. The built-in optimized communication chip cuts data transmission loss during cross-network interaction, realizing seamless high-speed data interconnection between upper SCADA monitoring host, ABB HPC800 main controller, S800 & SD series rack I/O modules and on-site field sensors, inverters and actuators; it effectively unifies scattered field equipment into one centralized control network and improves whole-system data exchange efficiency noticeably.
For electrical and mechanical specifications, the processor unit adopts standard 24VDC ±10% bus power supply with typical power consumption only 10W, featuring low energy consumption to lower factory long-term operational power expense. Its certified working ambient temperature ranges from 0℃ to +70℃ and storage temperature spans -20℃~+70℃, tolerating 5%–95% non-condensing surrounding humidity and passing CE, UL and RoHS global safety certifications to fit worldwide industrial access standards. With compact dimension of 170mm×104mm×74mm and net weight of 0.99kg, CP800 supports dual installation options including standard 35mm DIN rail clamping and DCS cabinet backplane embedded mounting; front-mounted LED indicator lamps clearly display power status, network connection and fault codes to accelerate on-site troubleshooting and reduce maintenance downtime.
Our warehouse holds abundant in-stock original ABB CP800 processor units with anti-shock factory carton packaging to prevent transit damage; confirmed customer orders can be delivered globally within 1–3 working days via DHL, UPS and FedEx international courier. Thanks to superior high-efficiency computing capability, stable running performance and full ABB DCS compatibility, genuine ABB CP800 has become the top-pick processor spare part for global automation integrators and end-user manufacturers.
