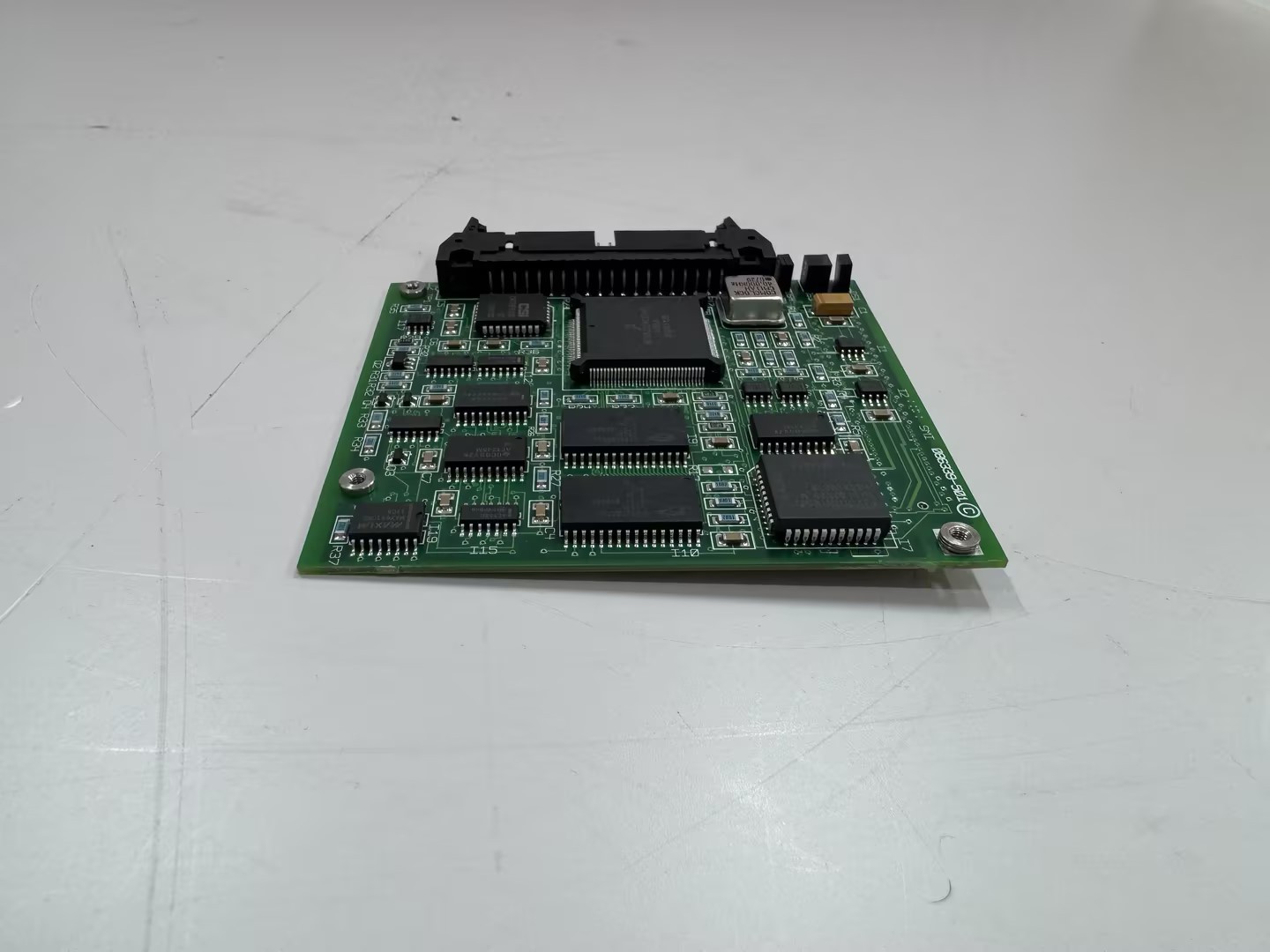

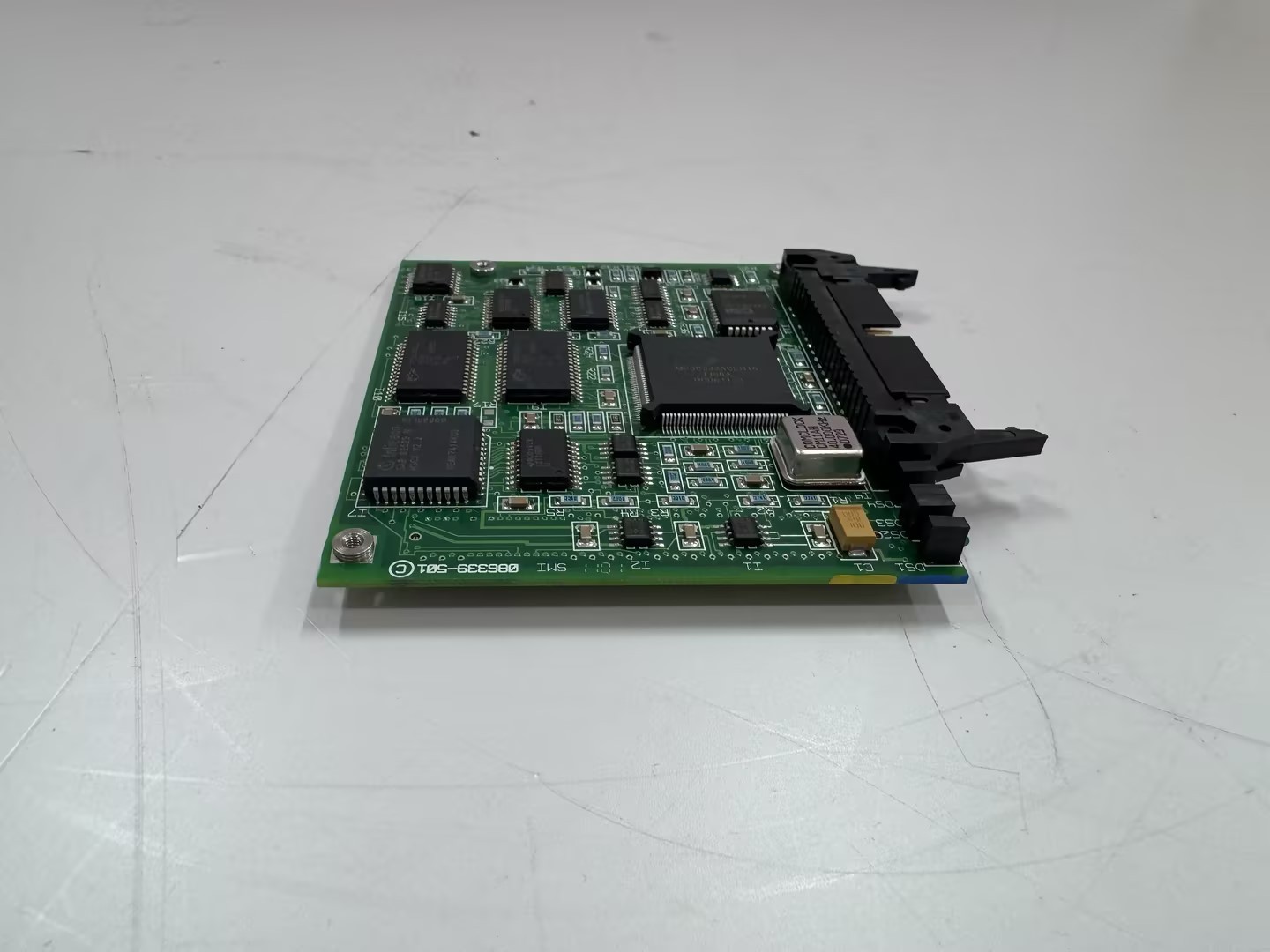

The ABB TC520 (Part No. 3BSE001449R1) is an original ABB high-precision thermocouple input module specially optimized for manufacturing automation and industrial process control. As a core I/O component of the ABB Advant DCS system, it is purpose-built for real-time thermocouple signal collection, temperature monitoring and process data feedback in automated production lines. Adopting genuine ABB original manufacturing standards and rigorous factory calibration, this module delivers consistent precision, strong operational stability and excellent system compatibility, making it a foundational hardware unit for intelligent manufacturing, automated process regulation and industrial temperature closed-loop control across various manufacturing sectors.
Centered on manufacturing automation application demands, the ABB TC520 thermocouple module boasts comprehensive compatibility with mainstream industrial thermocouple sensors, including J, K, T, E, N, R, S and B types, covering full-range temperature monitoring for automated manufacturing processes. It also supports standard Pt100 RTD temperature sensors, realizing dual thermocouple and resistance temperature acquisition functions. With a measurement range spanning from -200°C to 1820°C, it perfectly adapts to low-temperature assembly, constant-temperature processing, high-temperature forging, casting and thermal treatment procedures in automated factories. Every original module undergoes strict laboratory calibration before delivery, eliminating measurement errors common in generic modules and ensuring uniform, reliable temperature data for automated production parameter adjustment.
Tailored for continuous and high-efficiency operation of automated manufacturing lines, the ABB TC520 thermocouple module achieves outstanding measurement accuracy of ±0.1% full scale. Equipped with built-in digital filtering and independent channel anti-interference circuits, it effectively suppresses electromagnetic noise, temperature drift and signal fluctuation generated by automated mechanical equipment, robots and production devices on-site. Its complete original communication protocol compatibility enables seamless integration with ABB AC450, AC460 and Advant OCS automation control systems. It supports real-time temperature data transmission and synchronous linkage with automated production systems, providing accurate data support for automatic temperature adjustment, process quality control and production parameter optimization in manufacturing workshops.
To meet the long-term stable operation requirements of automated manufacturing equipment, the original ABB TC520 thermocouple module adopts industrial-grade rugged construction with high-strength shell and precision integrated chips. It operates reliably in ambient temperatures from -20°C to +60°C and 5%–95% non-condensing humidity, resisting vibration, dust and electromagnetic interference from automated assembly lines, processing equipment and conveying systems. The standardized DIN rail mounting design enables fast, standardized installation in automation control cabinets, facilitating rapid deployment, on-site debugging and routine maintenance for manufacturing automation projects, greatly improving the overall operational efficiency of production lines.
In automated manufacturing scenarios, stable power supply and reliable data communication are critical for continuous production. The original ABB TC520 thermocouple module adopts standard 24V DC industrial power supply with built-in overvoltage and overcurrent protection, effectively avoiding equipment failure caused by power fluctuation in factory environments. It supports stable RS-485 bus long-distance transmission, ensuring real-time and accurate upload of on-site thermocouple temperature data to the DCS automation system. Meanwhile, the intelligent self-diagnosis function can automatically detect thermocouple sensor disconnection, short circuit and signal anomalies, triggering real-time alarms to help staff quickly eliminate faults and avoid shutdown losses in automated manufacturing processes.
As genuine ABB original automation hardware, the TC520 thermocouple module strictly complies with ABB’s global industrial quality system, featuring low failure rate, long service life and no performance attenuation during long-term continuous operation. It is widely applicable to automated manufacturing fields including mechanical processing, automotive manufacturing, chemical production, pharmaceutical automation and new energy equipment production. By adopting original ABB TC520 modules, manufacturing enterprises can effectively improve the precision and stability of automated temperature control, reduce equipment maintenance costs and production downtime risks, and provide solid hardware support for the upgrading and intelligent transformation of modern manufacturing automation systems.
