ABB PPD113B01-25-111000 (3BHE023784R2530) AC800PEC Core Controller Module | For Industrial Power Distribution & Drive Automation Systems

Product Overview

The ABB PPD113B01-25-111000 (factory part code: 3BHE023784R2530) is the flagship high-speed master controller of the AC 800PEC power electronic control platform, the core brain for medium voltage power converters, power distribution systems, generator excitation units and heavy-duty industrial drive automation equipment. It executes high-speed closed-loop vector control, PWM pulse modulation, power distribution logic management and upper system data interaction, perfectly matched to ABB ACS880 medium voltage multi-drives, UNITROL excitation systems and high-power rectifier/inverter power distribution cabinets. Manufactured to original Swedish ABB industrial standards, every unit undergoes full aging testing, fiber communication verification and EMC anti-interference testing before factory delivery. We supply 100% brand-new original in-stock genuine modules, support fast global door-to-door delivery, and provide a standard 12-month manufacturer warranty, widely used for new industrial system construction, cabinet upgrade renovation and emergency spare replacement worldwide.

ABB PPD113 Controller

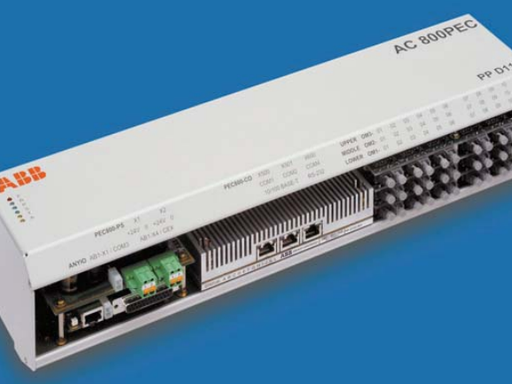

Module Front View

Core Technical Specifications

表格

Item	Detailed Parameter
Full Model	PPD113B01-25-111000 / 3BHE023784R2530
Processor	750MHz PowerPC RISC CPU, built-in 64-bit floating-point arithmetic unit
Memory	1MB Flash program memory, 512KB high-speed RAM
Working Power Supply	DC 24V (10~30VDC wide voltage input)
Standard Communication	Dual Ethernet, Profibus-DP, Modbus TCP/RTU, 2-channel AnyIO optical fiber interfaces
Expansion Slots	6 groups of optical PowerLink drive expansion slots + multi-channel I/O expansion
Control Cycle Speed	Minimum 25μs ultra-fast real-time control cycle
Operating Temperature	-20℃ ~ +60℃
Storage Temperature	-40℃ ~ +85℃
Installation Method	Standard DIN rail rack mounting
Insulation Grade	3kV reinforced electrical isolation between control and power circuits
Dimension & Weight	450×145×100mm, Net weight: 2.59kg

Key Advantages for Industrial Power Distribution & Automation

1. Ultra-High Real-Time Computing for Precise Power Distribution Control

Equipped with industrial high-performance floating-point processor, it supports microsecond-level fast algorithm operation, capable of executing complex current/voltage closed-loop control, power load distribution scheduling and motor torque/speed regulation logic. It can respond instantly to load fluctuations of power distribution systems, realize balanced power allocation for multi-parallel power units, effectively suppress current imbalance and voltage flicker in medium voltage power distribution networks, fully meeting the high dynamic response requirements of heavy industrial power supply and drive equipment.

2. Dual Fiber Optic Isolated Communication, Superior Anti-Interference Performance

Dual-channel optical fiber communication completely isolates low-voltage control circuits and high-voltage power distribution main circuits, strongly resisting grid harmonic surge, electromagnetic radiation and ground potential difference interference in industrial power distribution rooms. It stably realizes two-way data transmission with upper DCS/HMI monitoring systems, remote parameter modification, real-time power data uploading and fault alarm reporting, completely avoiding signal distortion and system misoperation caused by strong electrical interference in complex power environments.

3. Integrated Full-Link Safety Protection for Power Distribution Safety

Built-in hardware fast protection logic including overcurrent, overvoltage, overtemperature, short-circuit and STO safe torque off function. Once overload, short circuit, phase loss and other faults occur in the power distribution loop, the module instantly outputs locking protection instructions to IGCT/IGBT power modules, rapidly cuts off power output to prevent power device burnout and distribution system accidents. It comprehensively protects front-end power distribution cabinets, rear power loads and complete drive equipment, fully complying with international functional safety standards for industrial power systems.

4. Modular Hot-Swap Design, Convenient Maintenance for Power Systems

Standard rack-mounted modular structure supports hot-swappable replacement during equipment maintenance. On-site engineers can complete module disassembly and replacement quickly without long-time overall system power outage, greatly shortening downtime of industrial power distribution and production lines. The whole machine adopts industrial reinforced PCB and flame-retardant casing, with excellent vibration resistance and damp-heat aging resistance, adapting to 24/7 unattended continuous operation of central power control rooms.

Main Industrial Application Scenarios

1. Medium Voltage Drive & Power Distribution Systems: Core master control unit for ACS880 medium voltage inverters in metallurgical rolling mills, mine hoists and large conveyor power distribution drive systems
2. Power Plant Excitation & Auxiliary Power Distribution: Matching UNITROL generator excitation systems for thermal/hydropower units, fan/water pump energy-saving variable frequency power distribution control
3. New Energy Power Conversion Distribution: Wind/PV grid-connected converter control, SVC/SVG reactive power compensation equipment, high-power industrial rectifier power supply distribution systems
4. Petrochemical & Cement Process Power Automation: Large compressor, kiln main drive medium voltage power distribution and closed-loop automation control systems

Environmental Adaptability & Official Certifications

The module passes strict international vibration, mechanical shock and damp-heat aging tests, runs reliably in dusty heavy industrial workshops, humid coastal chemical power stations, low-temperature alpine power bases and offshore industrial platforms. It holds CE, UL, IEC61131-3 international industrial electrical safety certifications. Each original module is printed with exclusive serial number and production batch code to realize full-lifecycle original ABB quality traceability, with far higher stability and service life than generic aftermarket replacement control boards.

Original In-Stock Supply & Global Complete Service Support

All supplied ABB PPD113B01-25-111000 controller modules are 100% genuine original Swedish ABB factory products, complete with official sealed original packaging and full factory performance test reports, covered by a formal 12-month warranty for manufacturing defects under rated standard operating conditions. Our warehouse reserves abundant permanent ready stock to rapidly fulfill urgent power distribution equipment maintenance orders and large-volume bulk procurement for global industrial EPC projects. We adopt professional anti-static, shockproof and moisture-proof dedicated export packaging to protect precision internal circuit chips during long-distance sea and air international transportation. We cooperate with DHL, FedEx, UPS mainstream global logistics providers to realize fast worldwide delivery covering Europe, North America, Southeast Asia, the Middle East and other major industrial regions, with professional coordinated customs clearance support. Our full service includes pre-sales system compatibility verification, power distribution drive scheme technical consultation, plus after-sales technical support including installation guidance, optical fiber communication debugging, program downloading and overall system commissioning.
Selecting the original ABB PPD113B01-25-111000 AC800PEC controller module provides reliable core control guarantee for your industrial power distribution and medium voltage drive automation systems. Original ABB power electronic control technology fully meets the rigorous real-time control and long-term stable operation requirements of heavy industry power systems, effectively reducing unplanned power system shutdown risks and later maintenance costs. Combined with our efficient global fast delivery and complete warranty protection, it is the optimal original master control spare and configuration component for industrial power distribution automation projects worldwide.
