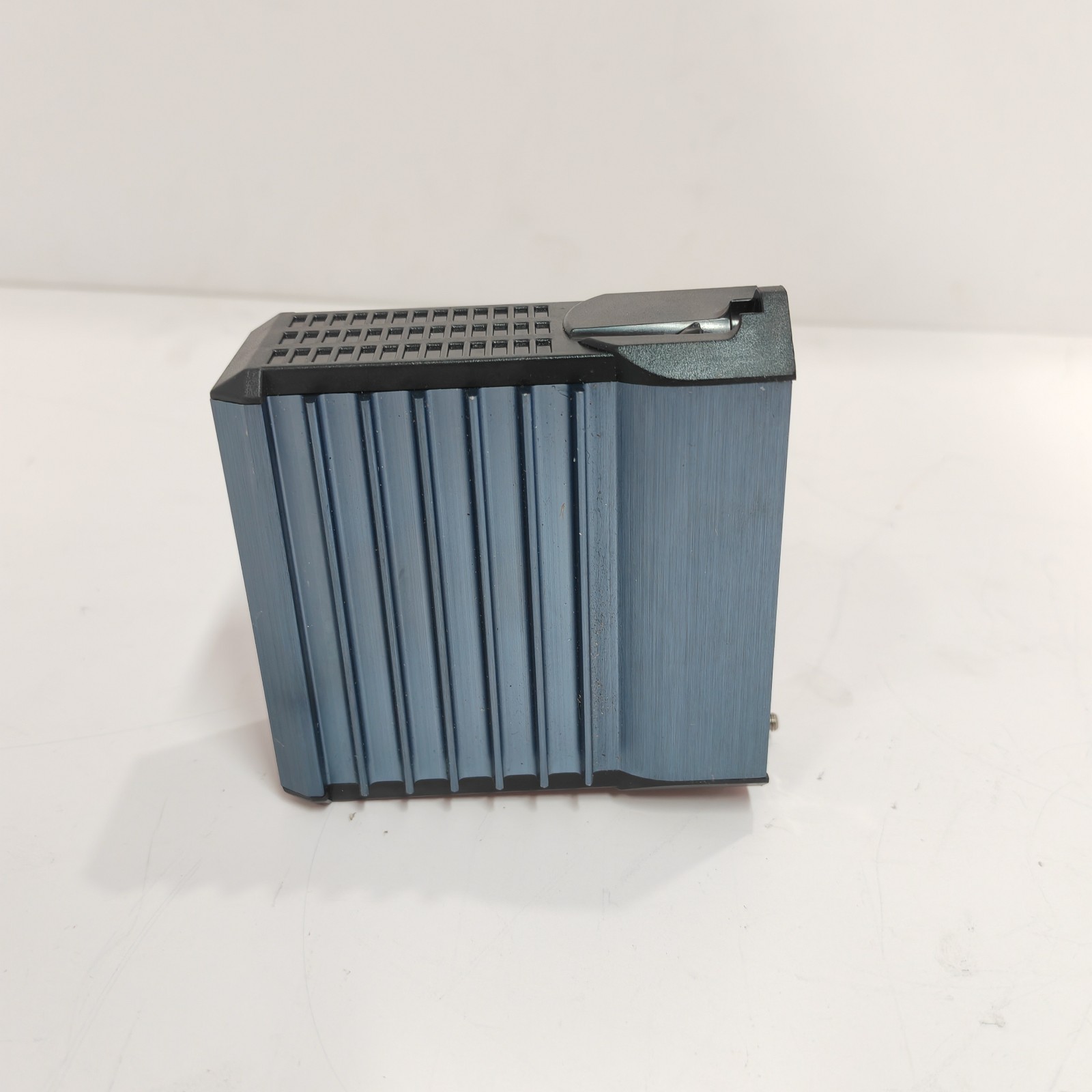

ABB LXN1604-6 3BHL000986P7000 Redundant CEX-bus Switch for ABB 800xA Safety Critical Application System

(Word Count: 998)

Product Overview

ABB LXN1604-6 with part number 3BHL000986P7000 is an original factory redundant CEX-bus switching module exclusively built for ABB Ability System 800xA safety critical and high integrity control systems. Unlike general industrial Ethernet switches, this hardware is purpose-built for Controller EXchange bus communication, acting as the core inter-controller data hub for SIL-rated safety production lines where communication interruption will trigger safety interlock trips, production shutdown or major process hazards. All units we supply are brand-new, factory-sealed original ABB stock with traceable serial numbers, fully complying with ABB’s strict safety hardware manufacturing standards. Refurbished, copied and disassembled counterfeit modules are completely excluded to guarantee uninterrupted deterministic communication for high-risk industrial sites including power generation, petrochemical refining and hazardous material processing plants.
In safety critical 800xA architectures, multiple redundant AC800M HI high-integrity controllers run synchronous safety logic, interlock judgment and real-time process protection algorithms simultaneously. Conventional network equipment cannot deliver zero-latency failover and consistent clock synchronization required by safety control loops. The LXN1604-6 solves this critical pain point by providing dedicated redundant CEX-bus forwarding, coordinating cross-controller safety signal transmission, redundant CPU state synchronization and interlock command sharing. Every data packet related to safety shutdown, overpressure protection and emergency trip logic passes through this switch, making it an irreplaceable backbone component for any SIL-certified 800xA safety system projecteero.

Core Technical Parameters

1. Model Code: LXN1604-6, Material Number: 3BHL000986P7000
2. Interface Layout: 4×10/100/1000BASE-T gigabit industrial RJ45 ports dedicated to CEX-bus interconnection
3. Redundancy Protocol Support: Full compliance with IEC 62439 HSR and PRP seamless parallel redundancy, zero switchover time during single port, cable or module channel failure
4. Communication Characteristic: Deterministic low-jitter transmission, sub-millisecond latency for safety interlock data, consistent timing synchronization across all connected safety controllers
5. Installation Form: Rack plug-in backplane design, hot-swappable without full cabinet power cut
6. Power Input: 24VDC backplane power supply matched with AC800M controller base unit
7. Environmental Standard: Operating temperature 0℃ ~ 60℃, IP20 cabinet protection, multi-stage surge and EMI suppression circuit for strong electromagnetic interference sites
8. Reliability Index: MTBF over 50,000 hours, meets continuous 24/7 safety system operation requirements
9. System Compatibility: Natively matched with full AC800M HI safety controller series (PM860, PM861, PM866), plug-and-play with System 800xA High Integrity safety platform
10. Safety Compliance: Designed to align with IEC 61508 and IEC 61511 industry safety standards for process safety critical control networkseero

Core Safety-Oriented Advantages

The most vital feature of LXN1604-6 is its seamless redundant communication architecture tailored for safety critical systems. Integrated HSR and PRP protocols realize fully parallel data transmission channels. If one communication line, RJ45 port or internal signal circuit fails, the backup channel takes over instantly with zero data loss and zero logic delay, avoiding accidental safety interlock activation caused by temporary network breakdown. It achieves 99.999% network availability, the mandatory standard for all high-risk process safety control systems, eliminating the risk of unplanned emergency shutdown and economic losses from production haltABB Group.
Second, ultra-stable deterministic transmission ensures safety logic consistency across multi-controller clusters. Safety interlock, over-temperature alarm and pressure trip signals require precise time alignment among distributed control units. This CEX-bus switch controls transmission jitter within microsecond range, preventing asynchronous safety judgment and false protection actions which frequently occur with ordinary commercial switches. Built-in real-time channel self-diagnosis continuously monitors port status, cable integrity and data packet loss rate, uploading fault alerts to the 800xA HMI for early maintenance before safety risks arise.
Third, hot-swap maintenance design minimizes safety system downtime risk. Safety critical control cabinets normally cannot be fully powered off during production cycles, as power cut will disable all process protection functions. Technicians can replace LXN1604-6 online without shutting down safety controllers, maintaining full safety monitoring and interlock protection throughout maintenance work. Its compact plug-in structure saves cabinet layout space for redundant safety I/O modules and power units, simplifying redundant safety cabinet construction for system integrators. Advanced anti-interference circuit design resists high-frequency disturbance from large compressors, furnaces and high-voltage transformers in hazardous industrial workshops, preventing signal distortion and safety logic misjudgment.

Safety Critical Application Scenarios

This redundant CEX-bus switch serves all high-risk industries deploying ABB 800xA High Integrity safety systems. In thermal, hydro and nuclear power plants, it constructs redundant communication networks for boiler protection, turbine safety interlock and generator emergency trip control. For oil refineries, natural gas compressor stations and chemical reaction workshops, it maintains synchronous operation of multi-unit safety controllers for flammable medium pressure and temperature protection systems. It is widely used in hazardous waste treatment, pharmaceutical batch reaction safety control and metallurgical furnace safety interlock systems, where communication failure will lead to fire, explosion or toxic leakage risks. All unmanned unattended safety control stations built on System 800xA rely on LXN1604-6 to establish fault-tolerant inter-controller safety data links, meeting the strict risk reduction requirements of SIL2 and SIL3 process safety projects.

Stock, Global Logistics & After-Sales Support

We maintain abundant in-stock inventory of original ABB LXN1604-6 3BHL000986P7000 redundant CEX-bus switches to support immediate shipment upon order confirmation. Global door-to-door delivery via DHL, FedEx, UPS and TNT is available worldwide. Domestic orders are dispatched within 1–3 working days, and cross-border shipments arrive in 3–7 working days. Each module is packed with original ABB anti-static shielding bags and shockproof export cartons to avoid transit damage. We provide complete customs clearance documents including commercial invoice and certificate of origin for international import declaration. Every product comes with a full 12-month original manufacturer warranty, and our professional automation technical team offers 7×24-hour online support covering safety cabinet layout, redundant CEX-bus network configuration, HSR/PRP parameter debugging and routine safety system fault troubleshooting, delivering full lifecycle reliable procurement service for global safety critical 800xA system integrators and end factories.
