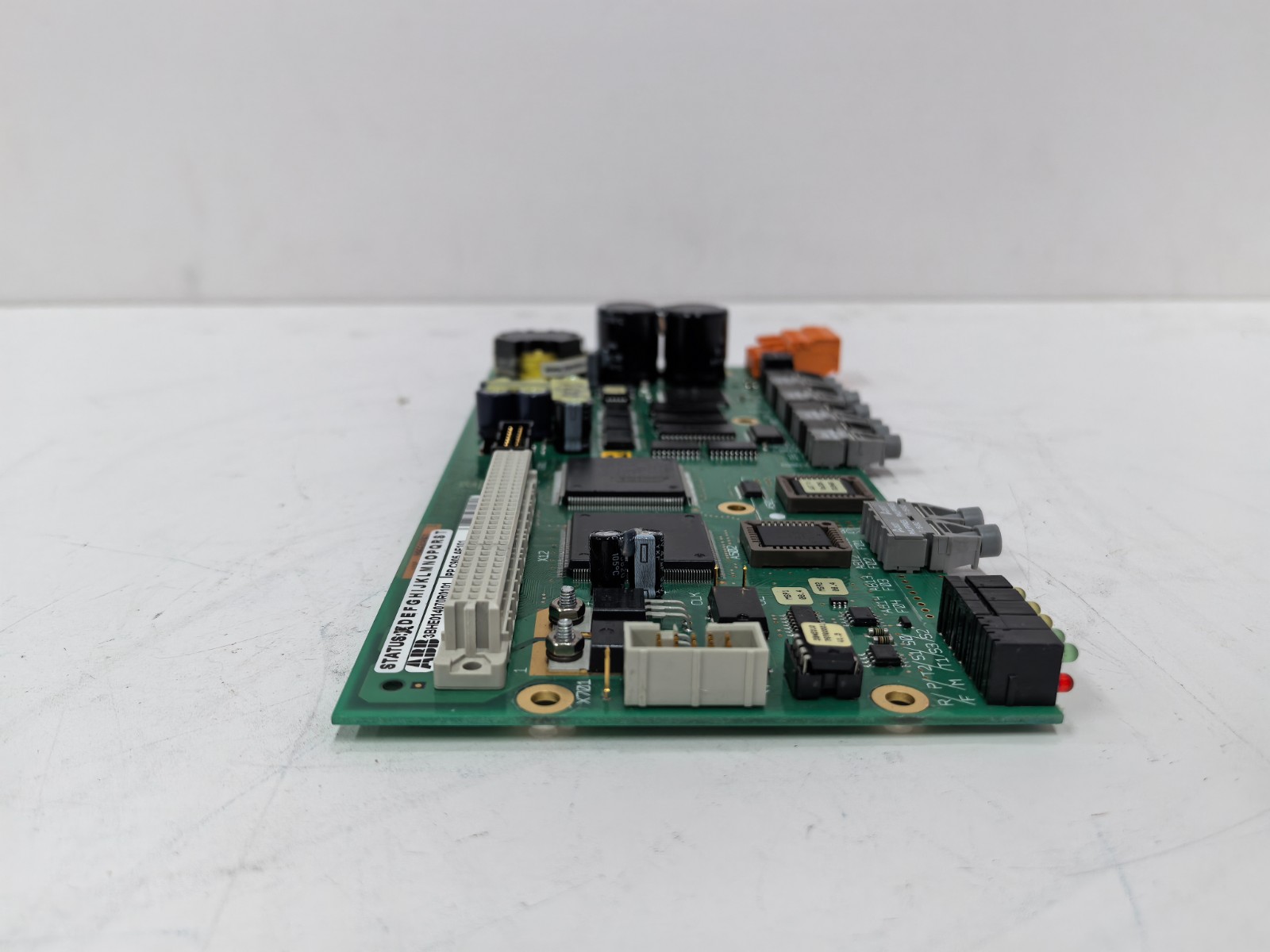

ABB LXN1604-6 3BHL000986P7000 Embedded Ethernet Switch for Seamless ABB 800xA System Network Integration

(Word Count: 997)

Product Overview

ABB LXN1604-6 with part number 3BHL000986P7000 is an original embedded CEX-bus Ethernet switching module engineered for native network integration within the ABB Ability System 800xA distributed control architecture. Unlike standalone external switches that require extra wiring, brackets and separate power feeds, this unit is built as an embedded backplane component that plugs directly into AC800M controller racks, fully integrated into the DCS hardware ecosystem out of the box. Its core purpose is unifying inter-controller real-time data exchange to streamline 800xA network topology design, eliminate third-party network hardware compatibility risks and simplify full-system integration work for automation system integrators. Every embedded switch we supply is factory-new, unopened genuine ABB hardware with traceable serial numbers and complete factory integration validation test records. Refurbished, cloned and disassembled counterfeit modules are strictly rejected, as non-original switching hardware will break seamless 800xA software-hardware matching and lead to network recognition failures, control signal jitter and unstable system integration.
System network integration is a critical phase of every 800xA project, requiring consistent communication logic between dozens of distributed AC800M controllers, HMI workstations, safety I/O cabinets and field control nodes. External off-brand switches demand complex protocol configuration, extra grounding wiring and independent power distribution, which add integration workload and introduce single-point failure risks. As a purpose-built embedded switching component, LXN1604-6 shares the same backplane 24VDC power supply as AC800M CPUs, automatically synchronizes system clock and aligns native CEX-bus communication protocols with 800xA engineering software. It removes extra integration steps for inter-controller network deployment, forming a unified embedded communication backbone that allows seamless end-to-end integration of control logic, safety interlock signals and process monitoring data across the entire plant DCS network.

Core Technical Parameters Optimized for Embedded 800xA Network Integration

1. Model Code: LXN1604-6, Material Number: 3BHL000986P7000
2. Embedded Form Factor: Rack backplane plug-in embedded design, no separate mounting hardware required for AC800M cabinet integration
3. Dedicated CEX-bus Ports: 4×10/100/1000BASE-T gigabit industrial RJ45 ports for embedded inter-controller data forwarding
4. Native System Integration Compatibility: Pre-calibrated for ABB System 800xA engineering tools, automatic hardware identification without manual driver installation
5. Redundancy Protocols for Integrated Networks: Embedded HSR & PRP parallel redundancy compliant with IEC 62439, zero switchover time for integrated safety control loops
6. Deterministic Embedded Transmission: Hardware fixed-cycle forwarding with microsecond-level jitter, synchronized clock alignment with all embedded AC800M controllers
7. Power Integration: Shared backplane 24VDC power from AC800M base units, no external power adapter needed for network operation
8. Maintenance Feature: Hot-swappable embedded structure, online replacement without interrupting integrated multi-controller network operation
9. Environmental Reliability: Operating temperature 0℃~60℃, IP20 cabinet protection, built-in EMI shielding to stabilize embedded network signals in high-interference racks
10. Lifespan Standard: MTBF over 50,000 hours, consistent long-term stable performance for fully integrated 24/7 DCS networks

Core Advantages for 800xA System Network Integration

First, fully embedded architecture drastically reduces system integration complexity. Traditional network integration workflows involve purchasing external switches, designing independent power wiring, configuring third-party VLAN and redundancy settings, and verifying cross-brand protocol compatibility—all time-consuming steps prone to configuration errors. The LXN1604-6 is embedded directly into the AC800M rack and recognized instantly by 800xA Control Builder software upon insertion. Preloaded factory firmware matches the native CEX-bus communication standard, eliminating manual protocol tuning and third-party driver debugging. Integrators can skip redundant network hardware layout design, shorten cabinet wiring cycles and cut project commissioning time significantly for both new plant construction and legacy 800xA system expansion.
Second, unified backplane power and clock synchronization ensures consistent integrated network timing. Separate external switches rely on isolated power sources, which may create timing offsets and asynchronous data transmission between controllers. This embedded switch draws stable power from the same rack backplane as all AC800M CPUs and synchronizes its internal clock with the DCS master clock automatically. All safety interlock, motion control and process regulation data forwarded across the embedded network maintain uniform cycle timing, preventing out-of-sync control logic that frequently arises in mixed-brand network integration schemes. The gigabit high-bandwidth embedded fabric supports mass synchronous data exchange for large integrated multi-cabinet 800xA systems without packet queuing or transmission delay.
Third, embedded HSR/PRP redundancy protects the fully integrated control network from single-point failure. Integrated plant DCS networks cannot tolerate communication outages, which would split coordinated multi-controller operation and trigger safety trip events. The embedded dual-channel parallel redundancy design transmits identical process data over two independent internal signal paths simultaneously. If one port, cable or embedded circuit fails, the backup path takes over instantly with zero frame loss, maintaining uninterrupted integrated communication across all linked control cabinets. Combined with ABB RNRP redundant routing, it builds a fully fault-tolerant embedded network that meets the 99.999% five 9’s availability requirement for integrated critical process systems.
Fourth, compact embedded layout optimizes cabinet space for complete system integration. Separate external switches occupy valuable DIN rail or rack space that would otherwise be reserved for safety I/O modules, signal terminals and auxiliary monitoring hardware. As an embedded plug-in unit sharing the AC800M backplane slot, LXN1604-6 eliminates extra rack mounting positions and messy cross-cabinet power cabling. The streamlined integrated cabinet layout simplifies long-term inspection, troubleshooting and future system expansion. Its industrial anti-interference circuit suppresses electromagnetic noise generated by adjacent embedded CPU and I/O modules, preserving clean signal quality within the densely packed control rack for reliable long-term network integration.

Typical 800xA Network Integration Application Scenarios

This embedded CEX-bus Ethernet switch is the standard core hardware for seamless network integration on all ABB 800xA distributed control projects. In thermal power unit DCS integration, it embeds into boiler, turbine and generator control racks to build a unified embedded network for coordinated unit load regulation and safety protection logic. For petrochemical and refinery integrated safety systems, it links ESD and F&G high-integrity AC800M controllers into one synchronized embedded communication backbone, streamlining cross-section hazardous process integration. It is widely deployed in municipal water treatment integrated monitoring systems, metallurgical continuous production line control cabinets, intelligent factory robotics motion control integrated racks and offshore oilfield platform compact DCS cabinets. Whether for full new-system network integration or incremental expansion of existing 800xA control networks, LXN1604-6 eliminates compatibility barriers between control and communication hardware to deliver unified, stable embedded DCS network architecture.

In-Stock Support, Global Logistics & 12-Month Warranty

We maintain abundant spot inventory of original ABB LXN1604-6 embedded Ethernet switches for 800xA system network integration projects, supporting immediate shipment after order confirmation. Global door-to-door delivery via DHL, FedEx, UPS and TNT serves automation integrators and end industrial facilities worldwide. Domestic orders are dispatched within 1–3 working days, cross-border shipments arrive at project integration sites within 3–7 working days. Each embedded switch is packed with original ABB anti-static shielding bags and reinforced shockproof export cartons to protect delicate backplane contact pins during transit. Complete customs clearance documents including commercial invoices and certificates of origin are provided to meet international import standards. Every module carries a full 12-month original manufacturer warranty, and our professional technical team offers 7×24-hour online guidance covering embedded rack layout, 800xA software network integration steps, HSR/PRP redundant topology configuration and embedded communication fault diagnosis, delivering full-cycle reliable hardware solutions for customers undertaking ABB 800xA system network integration work.
