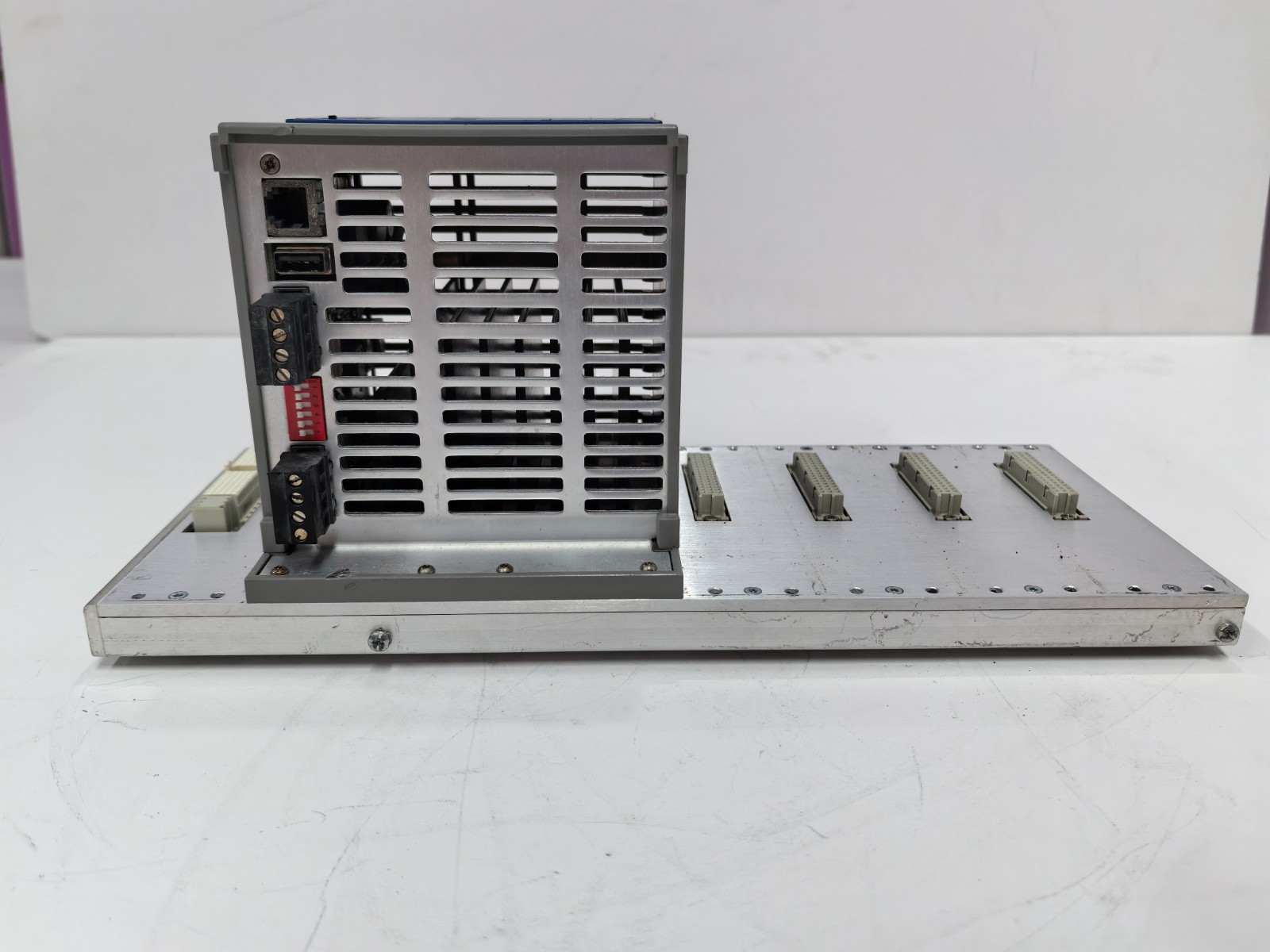

ABB LXN1604-6 3BHL000986P7000 CEX-bus Switch for ABB AC800M Multi-Controller Redundant Pairing

(Word Count: 997)

Product Overview

ABB LXN1604-6 with material number 3BHL000986P7000 is an original dedicated CEX-bus gigabit switching power module engineered exclusively to realize stable redundant pairing of multiple AC800M controller pairs within ABB Ability System 800xA DCS. Mission-critical industrial facilities including power plants, refineries and large water treatment plants widely deploy multi-group redundant AC800M CPU pairs (PM860, PM861, PM866) for segmented process control, safety interlock and equipment linkage. Each redundant controller pair relies on synchronized cross-CPU data exchange via the CEX-bus; ordinary generic switches lack native CEX-bus protocol matching and hardware-level redundancy acceleration, causing synchronization offset, slow CPU failover and broken redundant pairing logic. This genuine ABB integrated module acts as the core interconnection hub for multi-controller redundant groups, supporting star and segmented CEX-bus topologies to link multiple primary-backup CPU pairs, delivering deterministic zero-switchover communication to maintain seamless hot standby pairing status across the entire controller cluster. All supplied units are brand-new factory-sealed original ABB hardware with traceable serial numbers and full redundant pairing compatibility test reports; refurbished, cloned and disassembled counterfeit modules are strictly rejected to eliminate communication faults that trigger redundant CPU desync and unplanned process trip.
In standard AC800M redundant architecture, each primary and backup controller pair is interconnected via RCU Link for internal hot standby synchronization, while all controller pairs share the unified CEX-bus to exchange cross-group process data, safety alarm signals and global scheduling logic. Multi-controller redundant pairing scenarios require the CEX-bus switching hardware to simultaneously handle synchronous traffic from dozens of CPU pairs without queuing delay or link failure. LXN1604-6’s embedded HSR/PRP parallel redundancy hardware ensures every redundant controller pair maintains independent dual communication paths, protecting the integrity of multi-group hot standby pairing and becoming the standard matching hardware for new multi-redundant controller cabinet construction, system expansion and spare parts replacement of ABB 800xA platforms.

Core Technical Parameters Optimized for Multi-AC800M Redundant Pairing

1. Model Code: LXN1604-6, Material No.: 3BHL000986P7000
2. Dedicated CEX-bus Gigabit Ports: 4×10/100/1000BASE-T isolated industrial RJ45 ports for interconnecting multiple redundant AC800M controller pairs
3. Redundancy Protocol Acceleration: Native hardware HSR & PRP compliant with IEC 62439-3, zero switchover time to keep primary-backup CPU pairing synchronized during single link faults
4. Deterministic Pairing Communication: Hardware fixed-cycle forwarding, microsecond-level ultra-low jitter to guarantee consistent hot-standby synchronization cycle across all controller pairs
5. Multi-Level QoS Traffic Scheduling: IEEE 802.1p priority queuing, exclusive bandwidth allocation for RCU Link synchronized pairing frames and safety interlock signals
6. Integrated Power Stage: 85–264V AC ultra-wide universal input, stabilized 24.7VDC / 20A 500W output with overload, short-circuit, overvoltage multi-layer protection for redundant controller rack power supply
7. Topology Expandability: Supports cascade and star topology layout to expand multi-group redundant controller pairing capacity for large-scale DCS systems
8. Installation & Maintenance: AC800M rack backplane hot-swappable design, online module replacement without interrupting primary-backup CPU redundant pairing operation
9. System Compatibility: Native plug-and-play with all redundant-capable AC800M CPUs (PM861, PM864, PM865, PM866); fully coordinated with ABB RNRP redundant network routing protocol
10. Environmental & Reliability: Operating temperature -40℃ ~ +60℃, IP20 cabinet protection, full-board anti-corrosion conformal coating, MTBF over 50,000 hours for long-term 24/7 redundant controller operation

Core Advantages for AC800M Multi-Controller Redundant Pairing

1. Zero-Switchover HSR/PRP Preserves Unbroken Primary-Backup Pair Synchronization

Traditional unaccelerated switches produce tens of milliseconds of recovery delay during cable or port faults, which disrupts RCU Link hot standby data synchronization and causes redundant CPU desync, leading to slow CPU failover and temporary loss of process control logic. LXN1604-6 transmits identical pairing synchronization data over two fully independent physical channels simultaneously. If one communication path serving a redundant controller pair fails, the backup path takes over instantly with zero packet loss, maintaining consistent primary-backup synchronization status for all multi-group CPU pairs. Even during routine wiring inspection or partial hardware maintenance, redundant pairing logic remains intact without triggering unplanned primary CPU handover.

2. Expandable Gigabit Fabric Supports Large-Scale Multi-Redundant Controller Clusters

Large industrial DCS systems often deploy 3+ groups of redundant AC800M pairs to split boiler, reactor, water supply and flue gas control tasks. The four gigabit CEX-bus ports support flexible cascade expansion to connect additional redundant controller racks without overhauling the core communication backbone. High total switching bandwidth eliminates data congestion when dozens of CPU pairs transmit synchronization frames, process regulation data and cross-group alarm signals concurrently, ensuring every primary-backup pairing maintains stable microsecond-level synchronization cycle without lag.

3. All-In-One Power + Switch Eliminates Dual Single Points of Failure for Redundant Racks

Separate power supplies and standalone switches create two independent fault risks within each redundant controller cabinet, either of which can break multi-controller pairing synchronization. This integrated ABB module unifies stabilized wide-voltage power conversion and HSR/PRP redundant switching on a shared backplane interface, removing one entire layer of potential failure points for the redundant pairing network. Hierarchical electrical protection instantly isolates grid surges and short circuits without spark generation, protecting both redundant CPUs and CEX-bus communication circuits from cascading burnout, sustaining reliable multi-group hot standby operation under unstable industrial power grids.

4. Hot-Swap Maintenance Avoids Disruption to All Redundant Controller Pairs

Most continuous-process plants cannot power down entire control racks for hardware replacement, as shutdown will suspend all primary-backup CPU pairing and disable safety interlock functions. The plug-in hot-swappable design allows technicians to extract and replace LXN1604-6 while the cabinet remains energized. All connected redundant AC800M pairs stay fully synchronized throughout maintenance; RCU Link hot standby synchronization and cross-group CEX-bus data exchange operate without interruption, eliminating maintenance-induced CPU failover and production downtime. Compact embedded layout also saves rack space for additional redundant communication and I/O modules required for expanded multi-controller pairing architecture.

Typical Multi-Redundant Controller Pair Application Scenarios

This CEX-bus redundant switch is the mandatory core hardware for all ABB 800xA projects deploying multiple paired redundant AC800M controllers:

• Thermal/Hydro/Nuclear Power Plants: Multi-group redundant CPU pairs for boiler, turbine, auxiliary water and flue gas unit coordinated safety control
• Oil Refineries & Natural Gas Processing Stations: Segmented redundant controller clusters for reactor, storage tank and compressor ESD safety interlock pairing
• Municipal Large-Scale Water & Wastewater Treatment: Separate redundant CPU pairs for raw water intake, filtration, disinfection and sludge dewatering control
• Large-Scale Chemical & Pharmaceutical Batch Production: Multi-group redundant controller racks for hazardous synthesis and sterile manufacturing closed-loop regulation
• Offshore Platform & Remote Unattended Process Skids: Wide-temperature redundant pairing communication for unmanned long-cycle operation

In-Stock Supply, Global Logistics & 12-Month Genuine Warranty

We maintain abundant spot inventory of original ABB LXN1604-6 CEX-bus switches for multi-AC800M redundant pairing projects, supporting immediate shipment upon order confirmation. Global door-to-door delivery via DHL, FedEx, UPS and TNT serves process automation integrators and energy, water and manufacturing enterprises worldwide. Domestic orders dispatch within 1–3 working days, cross-border shipments arrive at redundant controller cabinet project sites within 3–7 working days. Each module is packed with original ABB anti-static shielding bags and reinforced shockproof export cartons to protect delicate CEX-bus contact pins and redundant switching chips during long-distance transit. Complete customs clearance documents including commercial invoices and certificates of origin are provided to meet global import inspection standards. Every unit carries a full 12-month official manufacturer warranty, and our professional automation technical team offers 7×24-hour online technical guidance covering multi-controller redundant pairing topology design, HSR/PRP zero-switchover parameter tuning, RCU Link synchronization debugging and CEX-bus desync fault diagnosis, delivering full-cycle reliable hardware support for customers building large-scale redundant AC800M controller clusters on ABB System 800xA.
