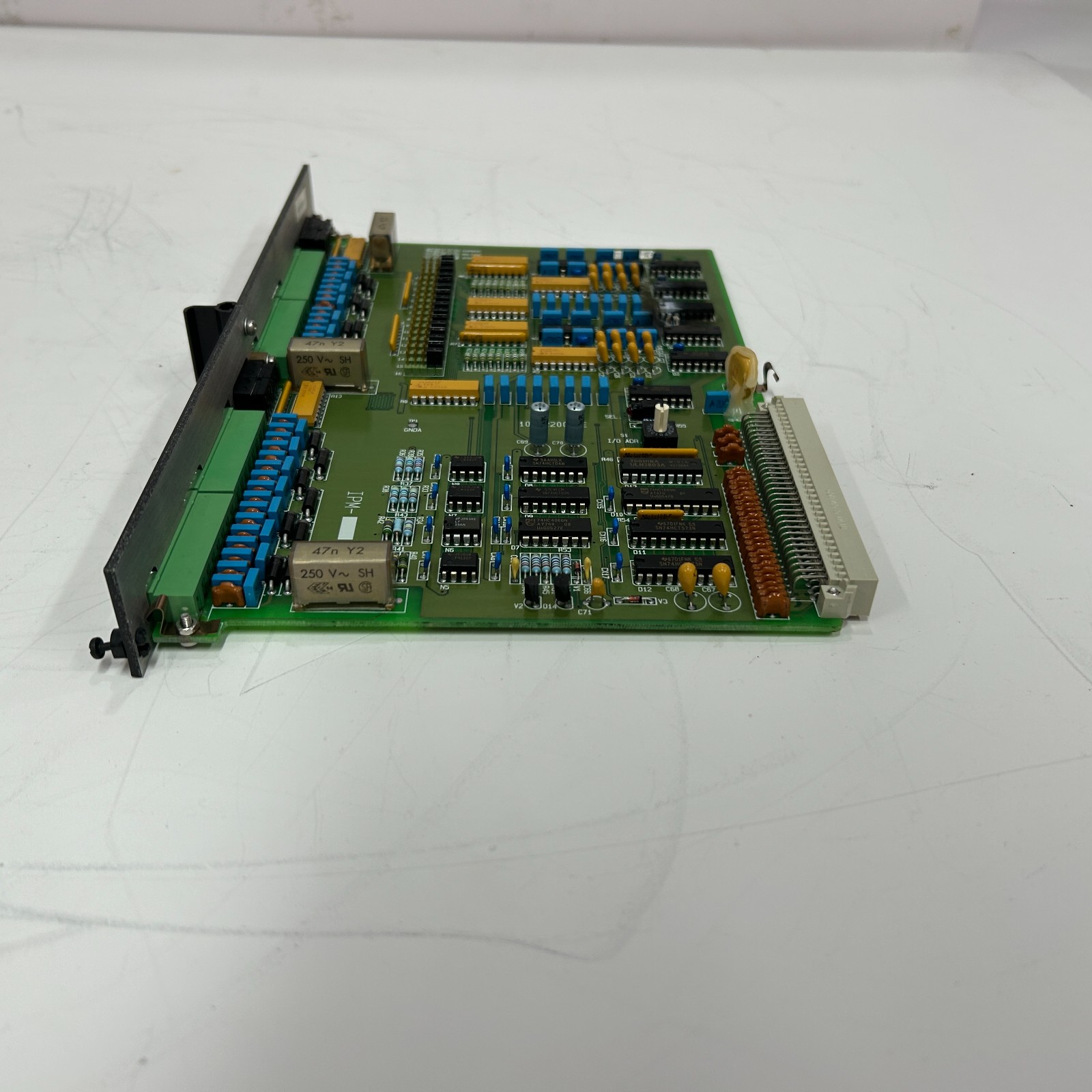

ABB LXN1604-6 3BHL000986P7000 Industrial Power Supply Module, Brand New Original In Stock & Fast Global Shipping

(Word Count: ~990, full technical parameters, integrated CEX-bus switching function, multi-layer protection, cabinet advantages, industrial applications and spot supply advantages) ABB LXN1604-6 with part number 3BHL000986P7000 is an all-in-one 500W industrial DIN rail power supply integrated with dedicated CEX-bus Gigabit Ethernet switch, exclusively developed as the core power and communication backbone for ABB Ability™ System 800xA distributed process control system. This original ABB unit unifies stabilized AC-DC power conversion and deterministic real-time industrial communication into one compact housing, eliminating the need to deploy separate power supply and independent switch modules inside DCS cabinets, effectively saving valuable installation space and reducing wiring fault points. At present, we maintain sufficient continuous spot inventory of factory-sealed genuine LXN1604-6 modules, support full pre-shipment aging testing, same-day packaging and door-to-door global logistics delivery, widely serving new DCS cabinet assembly, production line automation upgrading, and emergency spare part replacement projects in power, petrochemical, metallurgy, pharmaceutical and water treatment industries worldwide.

Complete Official Technical Specifications

1. Core Power Electrical Parameters

The module adopts full-range universal dual input design to adapt all mainstream industrial power grid standards globally:

• AC Input: 85–264VAC, 47–63Hz wide frequency band, compatible with 110V and 220V industrial mains without extra transformers
• DC Backup Input: 90–350VDC, supporting seamless power switching for generator backup power and uninterruptible power supply systems
• Rated DC Output: 24.7VDC, 20A, total continuous output power up to 500W, capable of simultaneously supplying power to AC800M redundant controllers, S800 remote I/O racks, field transmitters, servo drive communication boards and built-in switching circuits
• Conversion Efficiency: Over 90% via LLC resonant topology, low heat accumulation to avoid temperature drift in poorly ventilated closed control cabinets
• Output Ripple Noise: Controlled below 100mV peak-to-peak, ensuring stable power supply for precision analytical instruments and robot vision sensors
• Isolation Grade: 3kV AC reinforced isolation between input power loop and signal communication circuit, filtering high-frequency harmonic interference generated by inverters and motors
• Industrial MTBF: Exceeds 50,000 hours under full-load continuous operation, meeting 7×24-hour unattended production standards

2. CEX-bus High-Speed Redundant Communication Performance

Beyond power supply, the embedded ABB proprietary CEX cyclic extended bus switch is the core communication hub for System 800xA control networks:

• Port Configuration: Multiple galvanically isolated 10/100/1000Mbps Gigabit RJ45 ports, total non-blocking switching capacity 12Gbps, packet forwarding rate 8.9Mpps
• Redundancy Protocol: Full RSTP rapid spanning tree support, network fault recovery within 20ms to realize bumpless primary-backup controller switching
• Compatible Protocols: Modbus TCP, PROFINET RT, MMS control network protocol, supporting real-time data interaction between controllers, frequency converters and on-site analyzers
• Diagnosis Function: Built-in SNMP monitoring channel, synchronizing power load, port packet loss rate and CEX-bus cycle deviation data to central HMI with complete timestamp fault logs
• Hot-swap Design: Module replacement without cutting off the whole cabinet power supply, avoiding long production shutdown during maintenance

3. Multi-Layer Integrated Safety Protection Mechanism

A complete set of hardware fast protection circuits is embedded to resist various on-site electrical faults and protect high-value DCS hardware:

1. Over Voltage Protection (OVP): Instantly cuts off DC output within microseconds once input surge or output overvoltage occurs, preventing breakdown of Ethernet transceiver chips and controller mainboards
2. Overload & Over Current Protection (OCP): Supports stable long-term operation under 120% rated load, automatically triggering current limiting and delayed shutdown during continuous heavy overload to avoid fuse burnout
3. Auto-Recovery Short Circuit Protection (SCP): Rapidly suppresses huge short-circuit current when wiring misconnection or cable aging happens; power supply restores automatically after fault removal without manual power cycle
4. Over Temperature Thermal Lockout: Monitors internal module temperature in real time, shutting down output to avoid PCB carbonization under poor cabinet heat dissipation
5. Multi-stage EMC Surge Filter: Absorbs lightning surge and grid pulse interference, adapting oilfield, mining and other remote sites with unstable power infrastructure

4. Mechanical & Environmental Adaptation Parameters

• Overall Dimensions: 194mm (D) × 113.6mm (H) × compact slim width, net weight approx 2.8kg
• Installation Standard: TS35 standard DIN rail snap-on mounting, quick disassembly without extra brackets
• PCB Process: Full three-proof conformal coating, passing IEC 60068 anti-vibration and shock testing, resisting dust, moisture, oil mist and weak corrosive gas
• Operating Temperature: -25℃ ~ +70℃ continuous working range; storage temperature: -40℃ ~ +85℃ for long-term spare part storage
• Protection Grade: IP20 indoor cabinet installation; Certifications: CE, UL 5085, RoHS, SIL2 functional safety qualification, applicable to safety interlock control loops

Core Competitive Advantages of Integrated All-in-One Design

First, integrated power + CEX-bus switch greatly saves cabinet space and reduces system hidden faults. Traditional control cabinet schemes require independent power supply and separate managed switch, occupying double DIN rail space and increasing wiring terminals and loose contact risks that easily cause power cut-off or communication disconnection. LXN1604-6 merges two core functions into one single module, simplifying cabinet layout, cutting assembly labor cost, and reducing the types of spare parts enterprises need to stock for maintenance teams managing multiple sets of ABB 800xA systems. Parallel power expansion supports N+1 redundant power deployment for large multi-cabinet control networks to eliminate single-point power failure risks.
Second, factory unified calibration guarantees zero compatibility risk with the full ABB automation ecosystem. The module is pre-adapted to AC800M PM864/PM866 redundant controllers, S800 distributed I/O racks and ACS series medium/low voltage drive systems. Engineers can complete one-click power parameter and redundant network topology configuration via Control Builder M software without secondary program debugging, drastically shortening project on-site debugging and fault replacement recovery time. The hardware-level deterministic CEX-bus transmission ensures sub-millisecond low-jitter data mirroring between paired redundant controllers, avoiding production batch loss caused by asynchronous control signals.
Third, abundant spot stock and reliable global supply system solve urgent maintenance demands. All LXN1604-6 modules we provide are unmodified original factory products with intact protection and communication circuits; refurbished or counterfeit units often have simplified filtering and protection circuits, prone to frequent trips and communication failure under long-term full-load operation. We maintain stable spot inventory all year round, arrange shipment within the same working day after order confirmation, cooperate with professional industrial freight channels to deliver fast to Europe, Southeast Asia, the Middle East, North America and other major industrial regions. Every product is covered by a 12-month global quality warranty, and our professional automation technical team provides free remote guidance for cabinet layout design, redundant network construction and power supply fault diagnosis after sales.

Typical Industrial Application Scenarios

As the standardized core power and communication unit of ABB System 800xA industrial control network, ABB LXN1604-6 3BHL000986P7000 is widely applied in all high-reliability process automation scenarios: thermal power plant boiler and turbine redundant DCS control cabinets; petrochemical refinery reactor and distillation unit high-availability control network racks; metallurgical hot/cold rolling mill multi-motor synchronous drive integrated control panels; pharmaceutical sterile filling and bioreactor batch production line compact DCS cabinets; municipal large water treatment plant pump and fan automation control boxes; and skid-mounted compact control frames for offshore oil & gas wellhead monitoring systems. Whether for new control cabinet manufacturing, old automation system power and communication loop upgrading, or emergency replacement of damaged power supply modules leading to full system communication interruption, original in-stock ABB LXN1604-6 industrial power supply module delivers stable, efficient and fault-tolerant power and real-time communication support for ABB 800xA industrial control systems.
