Product Overview

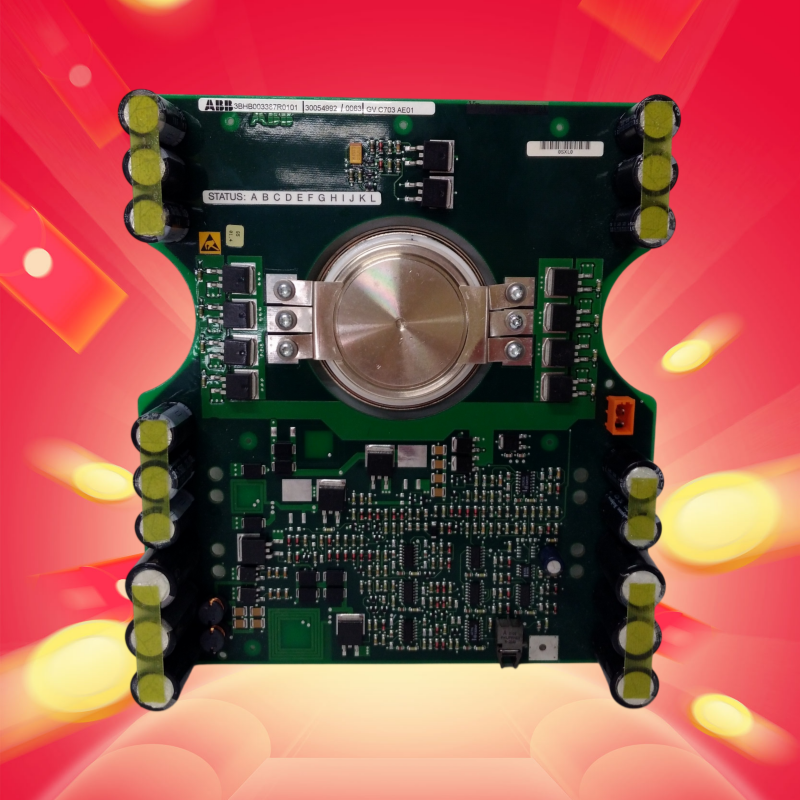

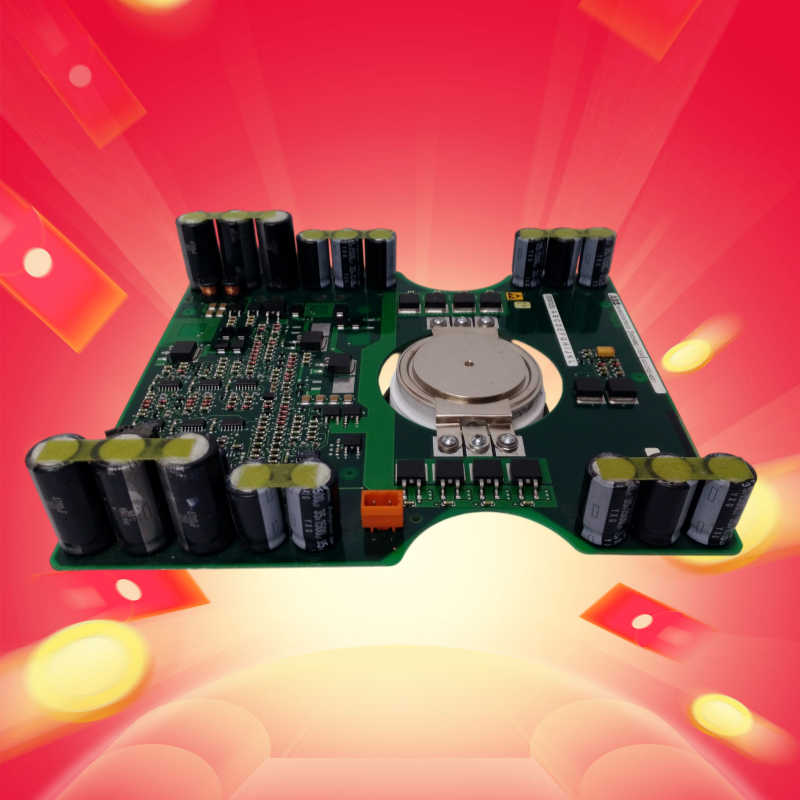

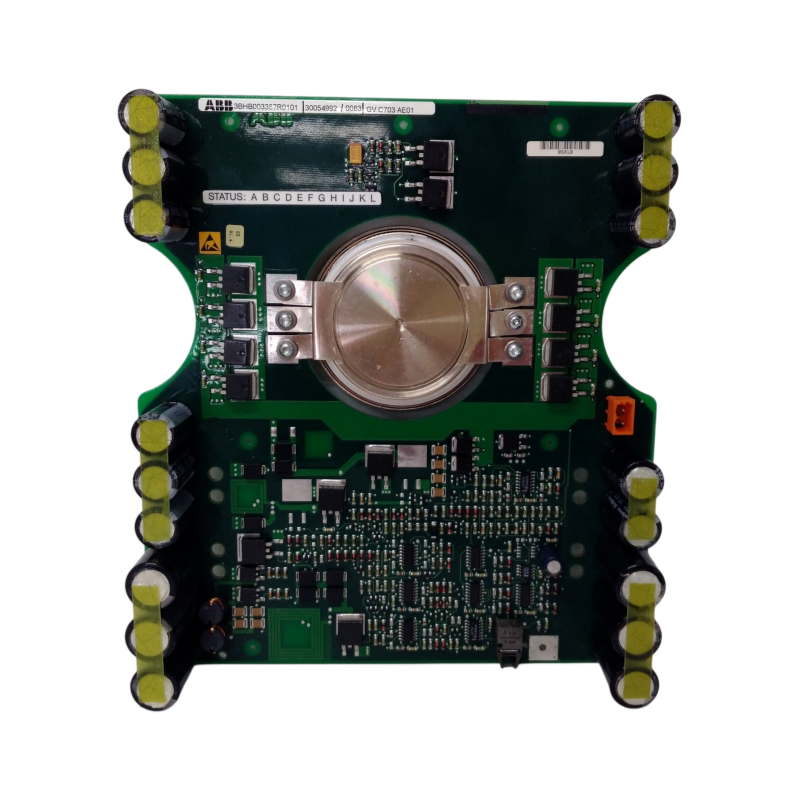

The ABB 5SHX08F4502 (3BHB003387R0101) is a press-pack Integrated Gate-Commutated Thyristor (IGCT) module manufactured by ABB for medium-voltage high-power power conversion systems. This model carries the part number 3BHB003387R0101, designed with integrated gate commutation technology to deliver high blocking voltage, high continuous current capacity and low switching losses for heavy-duty industrial power electronics applications.

This disc-type press-pack IGCT supports double-sided cooling, making it ideal for high-power converters that demand excellent thermal performance and long-term reliability. Widely used for maintenance and replacement of legacy ABB medium voltage drive and power inverter equipment, the ABB 5SHX08F4502 3BHB003387R0101 is a preferred spare part in power transmission, renewable energy and industrial drive fields. We supply 100% original brand new ABB 5SHX08F4502 3BHB003387R0101 IGCT modules, fully tested before shipment, in stock with global fast delivery and 12-month warranty.

Key Specifications

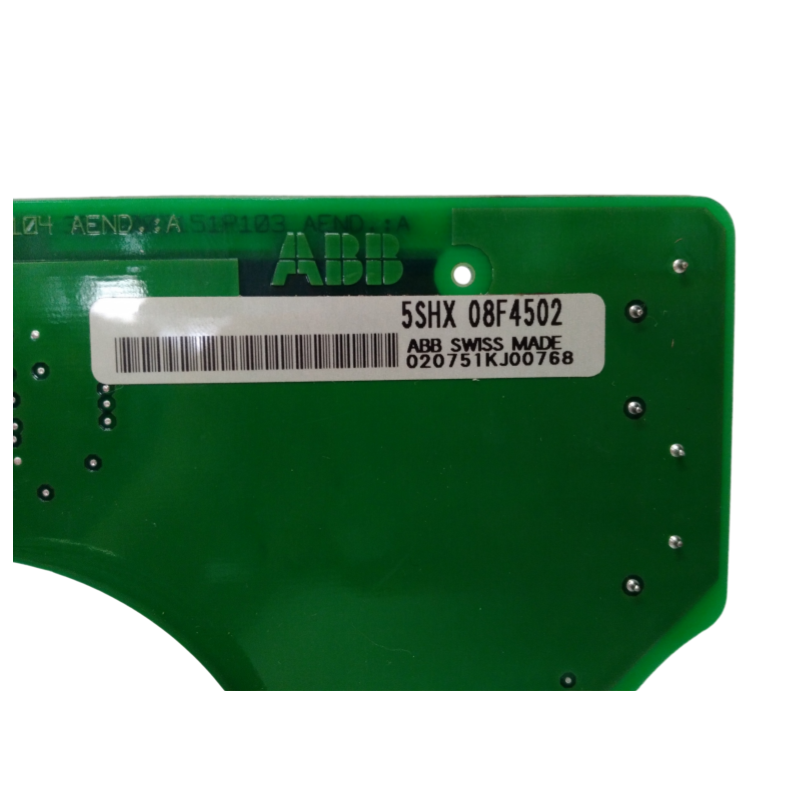

• Model Number: 5SHX08F4502
• Part Code: 3BHB003387R0101
• Device Type: IGCT (Integrated Gate-Commutated Thyristor) Module
• Manufacturer: ABB
• Package Style: Press-pack / Disc type, double-sided cooling
• Rated Blocking Voltage: 4500V (4.5kV)
• Average Continuous Current: 800A
• Surge Peak Current: 2400~3200A
• Case Operating Temperature: -25℃ ~ +70℃; Max Junction Temp:125℃
• Turn-off Time: ≤1.0µs
• Recommended Max Switching Frequency: Up to 500Hz
• On-state Voltage Drop: Approx 2.0~2.2V
• Condition: Brand New, Original Factory Sealed
• Warranty: 12 Months
• Certification: IEC industrial standard compliant

Core Features & Benefits

1. High Voltage & High Current Capacity The 4.5kV /800A rating supports medium voltage topologies from 2.3kV up to 4.16kV, and can be connected in series to reach higher voltage levels for large power converters.
2. Low Conduction & Switching Loss Compared with traditional GTO thyristors, the ABB 5SHX08F4502 IGCT reduces power losses, improving the overall energy efficiency of your power conversion system and lowering cooling system load.
3. Robust Press-Pack Construction & Double-sided Cooling Disc press-pack packaging enables double-sided heat dissipation. It features high mechanical stability, strong surge current tolerance and excellent thermal cycling performance for continuous heavy-load operation.
4. Fast Turn-off & Reliable Short-circuit Withstand Ultra-fast gate commutation and short-circuit ruggedness protect your converter system against transient electrical shocks and sudden load fluctuations in harsh industrial environments.
5. Simplified System Integration Optimized gate interface design reduces peripheral circuit complexity. Compatible with original ABB converter stacks for direct replacement during equipment overhaul and system upgrade projects.

Applications of ABB 5SHX08F4502 3BHB003387R0101 IGCT Module

• Medium voltage industrial motor drives & large frequency converters
• HVDC and flexible AC transmission power grid control equipment
• STATCOM reactive power compensation and grid stabilization systems
• Wind & solar energy high-power grid-connected inverters
• Marine propulsion power conversion systems
• Mining heavy-duty drive power units
• Industrial high-power rectifiers and chopper modules

Frequently Asked Questions

Q1: What is the alias part number of ABB 5SHX08F4502? A1: 3BHB003387R0101 is the ABB drawing/assembly part number for the 5SHX08F4502 IGCT assembly, these two codes refer to the same IGCT module.

Q2: What cooling method does 5SHX08F4502 require? A2: This press-pack IGCT supports both forced air cooling and liquid cooling. Double-sided cooling is recommended to achieve full rated performance.

Q3: Can this IGCT be used to replace old GTO thyristors? A3: Yes, the 5SHX08F4502 IGCT is often selected as an upgrade replacement for GTO-based converters, offering faster switching and lower losses.

Our Service

We are a professional supplier of DCS, PLC and power semiconductor spare parts, stocking a full range of ABB IGCT modules including the ABB 5SHX08F4502 3BHB003387R0101. We provide pre-shipment quality inspection, technical support for model matching, global logistics and after-sales support. Our abundant inventory helps you shorten equipment downtime and reduce maintenance costs for your medium voltage power control systems.



We are a seasoned supplier of spare parts for large automation systems, specializing in DCS, PLC, redundant fault-tolerant control and robot system components.

Our product portfolio covers world-renowned brands: Foxboro, Tricon, Bently, Honeywell, Ovation, MOTOROLA, Xycom, ABB, Allen-Bradley, Schneider, Siemens, GE Fanuc, Yaskawa, Woodward. We provide both automation spare parts and system integration solutions.

Backed by abundant inventory of DCS, PLC, CNC, HMI, industrial controllers, drives and servo motors, we deliver reliable spare parts service to maintain your existing control and drive systems and lower your maintenance expenditure. We also constantly add new hardware stock to sustain your current installations and enable technology upgrades.
