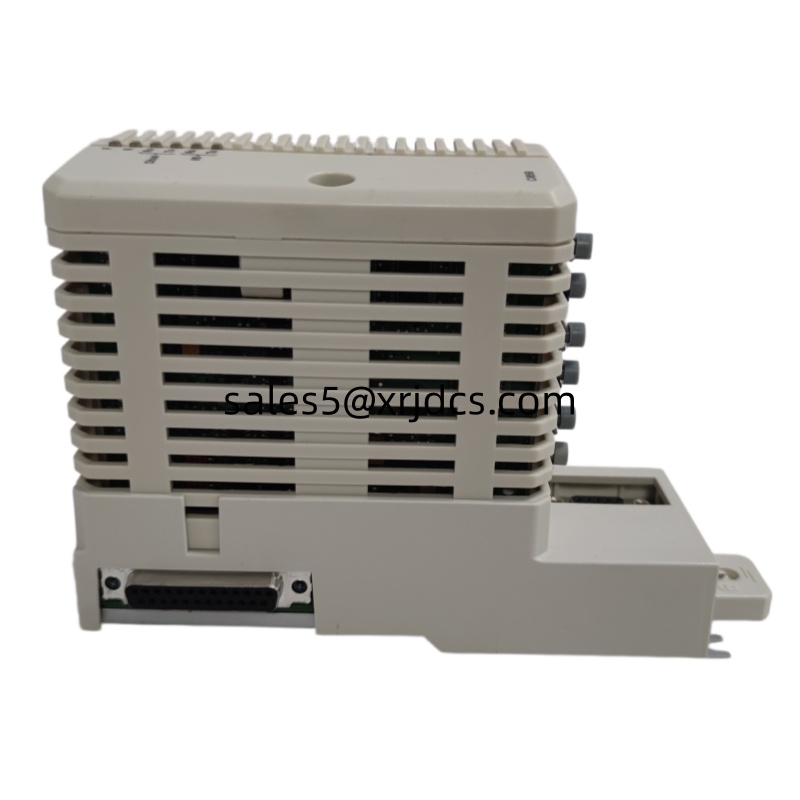

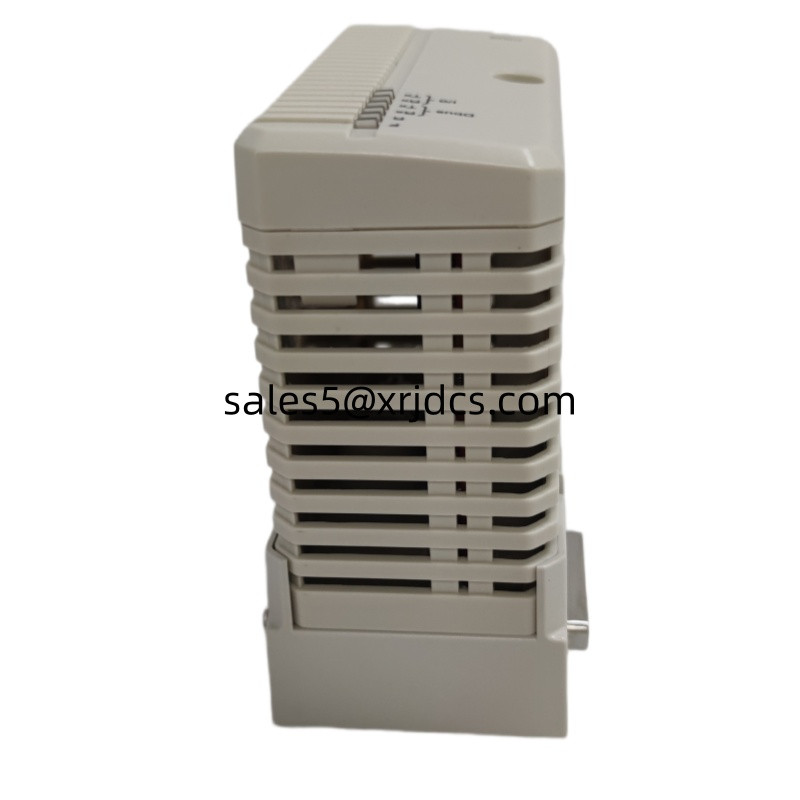

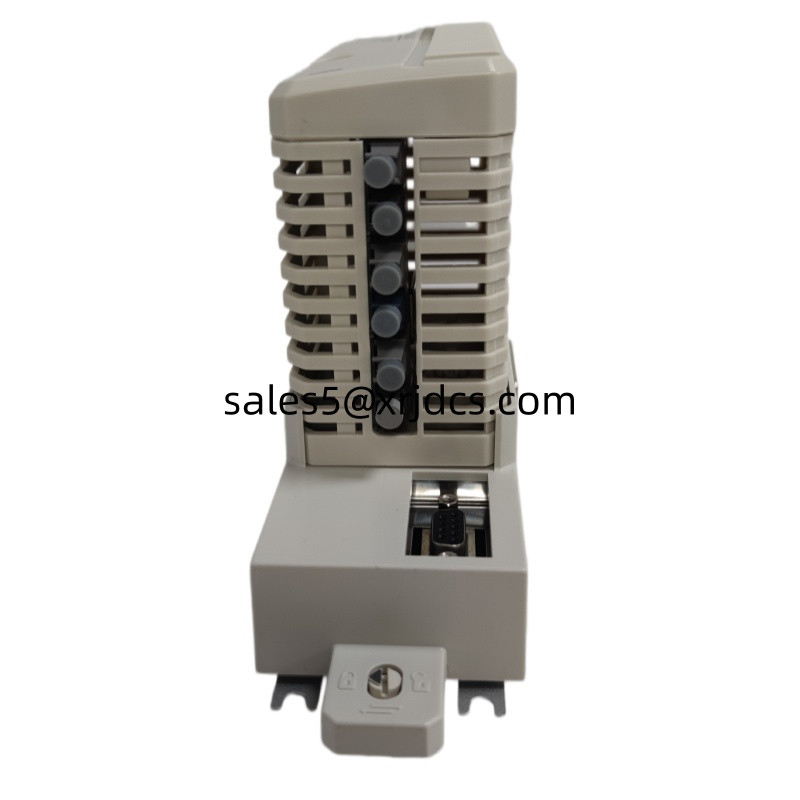

ABB CI858K01 3BSE018135R1 is a high-performance DriveBus communication interface module specifically designed for ABB AC 800M control systems. As a critical component in the field of industrial automation, this module enables seamless data exchange between ABB drives and controllers, providing stable and efficient communication solutions for modern industrial control systems.
The CI858K01 utilizes advanced DriveBus protocol technology, supporting high-speed data transmission and hot-swap functionality. It is widely used in paper machine control systems, rolling mill drive systems, and other industrial automation scenarios requiring precise drive control. With its excellent performance specifications and reliable industrial-grade design, this module has become the preferred communication interface solution for many industrial users.
| Parameter |
Technical Specifications |
| Product Model |
CI858K01 |
| Part Number |
3BSE018135R1 |
| Manufacturer |
ABB (Switzerland) |
| Product Series |
AC 800M Control System |
| Interface Type |
DriveBus Communication Interface |
| Operating Mode |
Master |
| Parameter |
Technical Specifications |
| Communication Protocol |
ABB DriveBus Protocol |
| Transmission Rate |
8 Mbit/s |
| Connector Type |
Fiber Optic |
| Maximum Drive Connections |
24 ABB drives |
| Maximum Modules per Controller |
2 CI858 modules |
| Topology Support |
Star, Chain, Ring |
| Line Redundancy |
No |
| Module Redundancy |
No |
| Hot-Swap Support |
Yes |
| Parameter |
Technical Specifications |
| Power Supply |
Powered via CEX-Bus from processor unit |
| External Power Required |
No additional external power needed |
| 24V Power Consumption |
Typically 200 mA |
| Maximum Modules on CEX Bus |
2 modules |
| Parameter |
Technical Specifications |
| Width |
59 mm (2.3 inches) |
| Height |
185 mm (7.3 inches) |
| Depth |
127.5 mm (5.0 inches) |
| Weight (including baseplate) |
700 g (1.5 lbs) |
| Protection Rating |
IP20 (per EN60529, IEC 529) |
| Mounting Method |
DIN rail or panel mounting |
| Parameter |
Technical Specifications |
| Operating Temperature |
0°C to +55°C (+32°F to +131°F) |
| Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Relative Humidity |
5% to 95% (non-condensing) |
| Corrosion Protection |
ISA 71.04 G3 compliant |
The CI858K01 employs ABB's proprietary DriveBus communication protocol, specifically optimized for communication between ABB drives and special I/O units. The 8 Mbit/s high transmission rate ensures rapid exchange of real-time data, meeting the strict requirements of modern industrial automation systems for communication speed and reliability.
- Multiple Drive Connections: Single CI858 module can connect up to 24 ABB drives
- Module Stacking: One AC 800M controller can connect up to 2 CI858 modules
- Flexible Topology: Supports star, chain, and ring network topologies
- Branch Units: NDBU branching units enable logical bus with physical star topology
The DriveBus protocol supports hot-swap functionality, allowing drive replacement or addition while the system is running, greatly improving system maintainability and operational continuity while reducing downtime maintenance costs.
CI858K01 receives power from the processor unit via CEX-Bus, eliminating the need for additional external power supply. This not only simplifies system design but also reduces installation complexity and overall cost.
- Wide operating temperature range (0°C to +55°C)
- Excellent corrosion protection (G3 grade)
- Comprehensive electromagnetic compatibility design
- Multiple international certifications ensure product quality
The CI858K01 is particularly suitable for ABB paper machine control systems, achieving precise communication with multiple sectional drives through the DriveBus interface, ensuring precise tension and speed control during paper production processes.
In the metal rolling industry, the CI858K01 provides reliable communication solutions for rolling mill drive systems, supporting multi-stand coordinated control to ensure product quality and production efficiency.
Widely used in process industries such as chemical, oil & gas, and water treatment, enabling efficient data exchange between field devices and control systems.
Suitable for various manufacturing production lines, including:
- Automotive manufacturing
- Food processing
- Pharmaceutical production
- Electronic manufacturing
- Packaging machinery
- Textile machinery
In industries such as power, wind power, and hydropower, the CI858K01 provides a stable data communication foundation for equipment monitoring and energy management.
- Optimized Dedicated Protocol: DriveBus protocol optimized specifically for ABB drive communication
- High-Speed Data Transmission: 8 Mbit/s transmission rate meets real-time control requirements
- Plug and Play: Simplifies installation and configuration process
- Powerful Diagnostics: Built-in status monitoring and fault diagnosis capabilities
- Reduced Total Cost of Ownership: No external power needed, simplified system design
- Minimized Downtime: Hot-swap functionality supports online maintenance
- High Scalability: Flexible system architecture supports future expansion needs
- Long-Life Design: Industrial-grade quality ensures long-term stable operation
- CE Certification: Compliant with EU safety, health, and environmental requirements
- RoHS Compliant: Compliant with Directive 2011/65/EU (EN 50581:2012 standard)
- WEEE Compliant: Compliant with Directive 2012/19/EU
- Marine Certifications: Certified by ABS, BV, DNV-GL, LR and other international classification societies
- International Standards: Compliant with IEC 61131-2, IEC 61800-3 and other international standards
- DIN Rail Mounting: Supports standard 35mm DIN rail mounting
- Panel Mounting: Can also use panel fixing method
- Ventilation Requirements: Ensure adequate ventilation space around the module to prevent overheating
- Fiber Connections: Use appropriate fiber optic cables for DriveBus network connections
- Compact Control Builder: Professional configuration software provided by ABB
- Supports parameter configuration, diagnostic monitoring, and troubleshooting
- User-friendly graphical interface simplifies operation
- Plan network topology structure properly
- Set termination resistors correctly
- Select appropriate fiber optic cable types based on distance
- Use NDBU branching units to expand network scale
A: The CI858K01 is specifically designed for ABB AC 800M controller series, connecting to controllers via CEX-Bus for communication with ABB drives and special I/O units.
A: When connecting more than 24 drives is required, you can use ABB NDBU branching units to create multiple logical bus segments, with each CI858 module connecting up to 24 drives.
A: The CI858K01 supports all ABB drives using the DriveBus protocol. Please refer to official ABB technical documentation for specific compatible models.
A: The CI858K01 module itself does not support redundancy, but the DriveBus network can be configured with redundant paths using branching units to improve system reliability.
A: Use ABB Compact Control Builder software for online diagnostics. The module provides LED status indicators to display operating status and supports detailed fault code queries.
A: The CI858K01 has an operating temperature range of 0°C to +55°C and a storage temperature range of -40°C to +70°C, making it suitable for most industrial environment applications.
A: Yes, the CI858K01 supports hot-swap functionality, allowing module replacement without affecting system operation, improving system maintainability.
A: DriveBus fiber transmission distance depends on fiber type and quality. Generally, single-segment transmission distance can reach several kilometers. Please refer to ABB DriveBus network design guidelines for specific information.
- CE Marking: Compliant with relevant EU directive requirements
- Marine Classification Society Certifications: ABS, BV, DNV-GL, LR
- RoHS Compliance: Compliant with EU Restriction of Hazardous Substances Directive
- WEEE Compliance: Compliant with Waste Electrical and Electronic Equipment Directive
- IEC 61131-2: Programmable controllers standard
- IEC 61800-3: Adjustable speed electrical power drive systems standard
- EN 60529: Protection rating standard
- IEC 529: Protection rating standard
- ISA 71.04: Corrosion protection standard
- EN 61000-6-4: Electromagnetic emission standard
- EN 61000-6-2: Electromagnetic immunity standard
- UL 508: Electrical safety standard
- Warranty Period: 12 months
- Warranty Coverage: Manufacturing quality defects
- Warranty Service: Free repair or replacement
- Product Status: Some suppliers list as discontinued, but stock is still available
- Delivery Time: 3-5 working days (in stock)
- Minimum Order Quantity: 1 piece
- Packaging: Original factory carton packaging
For inquiries about the ABB CI858K01 3BSE018135R1 DriveBus Communication Interface Module, please contact our professional sales team:
Contact Information:
- Email: sales5@xrjdcs.com
- Phone: +86-18250705533
- WhatsApp: +86-18250705533
- Website: www.xrj-plc.com
Our Commitment:
- 100% genuine ABB products
- Professional technical support
- Competitive pricing
- Fast global delivery
- 24/7 customer service
About Us:
We are a leading supplier of industrial automation products, specializing in providing high-quality ABB components to customers worldwide. With extensive experience and professional knowledge, we are committed to delivering the best solutions for your industrial automation needs.
The ABB CI858K01 3BSE018135R1 DriveBus Communication Interface Module, with its excellent technical performance, reliable industrial-grade design, and extensive application adaptability, has become an indispensable key component in the field of industrial automation. Whether in traditional industries such as paper making and steel rolling or modern intelligent manufacturing systems, the CI858K01 provides stable and efficient communication solutions.
By choosing the CI858K01, you will gain:
- Industry-leading DriveBus communication technology
- High-speed and reliable data transmission performance
- Flexible system expansion capabilities
- Convenient maintenance operation experience
- Comprehensive international certification assurance
- Long-term stable product support
Contact your authorized ABB distributor immediately to obtain detailed technical specifications and quotation information for the CI858K01 3BSE018135R1, and take a critical step in upgrading your industrial automation system!
